Analog Devices / Maxim Integrated MAX98396 Evaluation System

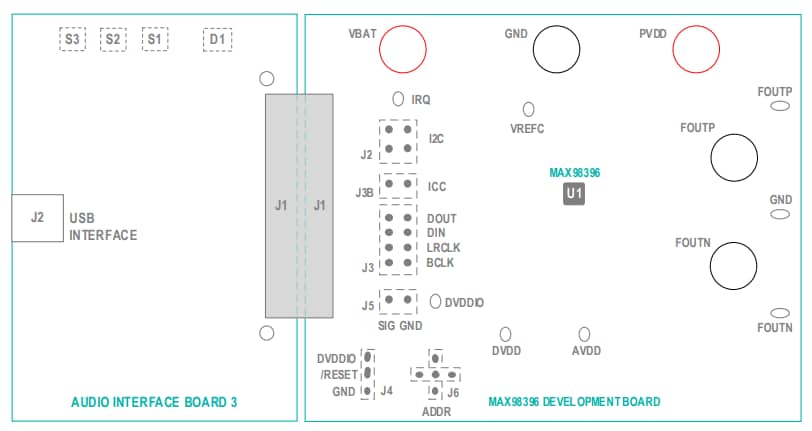

Analog Devices Inc. MAX98396 Evaluation System is designed to evaluate the MAX98396 mono Class-D audio amplifier that features Dynamic Headroom Tracking (DHT) and clock-and-data monitoring. The evaluation system includes the MAX98396 Development board (DEV board), Audio Interface board III (AUDINT3), a micro-USB cable, and the MAX98396 evaluation software. This DEV board is evaluated with the AUDINT3 board as an EV system. The IC DEV board requires two additional supply inputs 3V to 5.5V (V_BAT) and 3V to 20V (P_VDD). The MAX98396 evaluation system supports standard I²S, left-justified, TDM digital audio interfaces, and I²C for control. The AUDINT3 board provides the USB-to-PCM and USB-to-I²C interfaces. ADI MAX98396 Evaluation System comes with a complete hardware system with easy setup and no tools or special equipment required.
