Analog Devices / Maxim Integrated MAX98395EVSYS Evaluation System

Analog Devices MAX98395EVSYS Evaluation System evaluates the MAX98395 mono Class-D audio amplifier featuring dynamic headroom tracking (DHT) and clock-and-data monitoring. The Evaluation System contains an IC development board (DEV board), Analog Devices’ audio interface board III (AUDINT3), USB cable, and IC evaluation software.

The DEV board is intended to be evaluated with the AUDINT3 board as an Evaluation System. The IC supports standard I²S, left-justified, TDM digital audio interfaces, and I²C for control.

The AUDINT3 board provides the USB-to-PCM and USB to-I²C interfaces and the 1.8V AVDD supply, and the 1.2V DVDD and DVDDIO supplies needed to evaluate the DEV board. The IC DEV board requires two additional supply inputs, 3V to 5.5V (VBAT) and 3V to 14V (PVDD). The MAX98395 Evaluation Software provides complete access to all hardware registers.

Features

Complete hardware system with easy setup; no tools or special equipment required
Easy to use Graphical User Interface (GUI) evaluation software (Windows 7/10 Compatible)
- Complete access to all hardware registers

Applications

Mobile speakers
Notebook computers
Smart IoT

Smart speakers
Soundbars
Tablets

Kit Contents

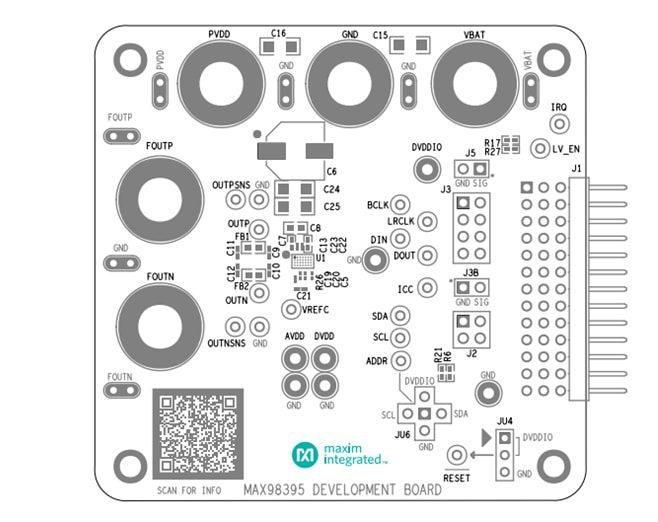

IC Development Board (DEV board)
Audio interface board III (AUDINT3)

USB Cable
IC Evaluation software

Required Equipment

MAX98395 EV System
- Audio interface board III
- 3V to 14V DC power supply
- 3V to 5.5V DC power supply
- Micro-USB cable
4Q to 80 speaker

USB audio source (e.g., Windows Media Player^® or iTunes^®)
User-supplied Windows 7 or Windows 10 PC with available USB port
