Analog Devices / Maxim Integrated MAX98363 (A/B/C/D) Development Boards

Analog Devices MAX98363 (A/B/C/D) Development Boards are fully assembled and tested, allowing the evaluation of the MAX98363 amplifiers. The MAX98363A / MAX98363B / MAX98363C / MAX98363D SoundWire® v1.2-compatible input Class-D mono amplifiers feature Class AB audio performance with Class D efficiency. Analog Devices MAX98363 development boards are intended to work with an external SoundWire manager, which provides the v1.2 SoundWire clock and data. A supply input of 2.5V to 5.5V for V_DD is needed to power the development boards.

Features

MIPI SoundWire v1.2 compliant
3.2W output power into 4Ω at 5V
Single-supply operation (2.5V to 5.5V)
12.3mW quiescent power with external DVDDIO
92% efficiency (R_L = 8Ω, THD+N = 10%)
12.8μV_RMS output noise
108.5dB dynamic range

Low 0.014% THD+N at 1kHz
Sophisticated edge rate control enables filterless Class-D outputs
Extensive click-and-pop reduction circuitry
Available in space-saving 9-bump, Wafer-Level Package (WLP) 1.528mm x 1.528mm, 0.4mm pitch

Kit Contents

MAX98363 development board
Audio interface board IV
Micro-USB cable

Analog Devices / Maxim Integrated MAX98363 (A/B/C/D) Development Boards

Features

Kit Contents

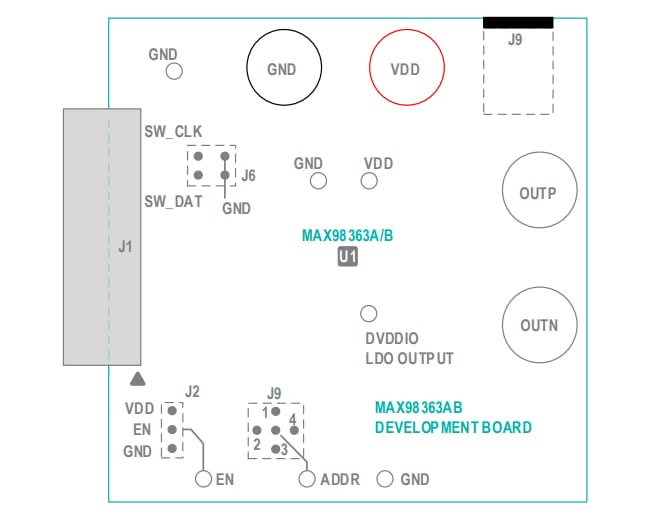

PCB Layout (A/B)

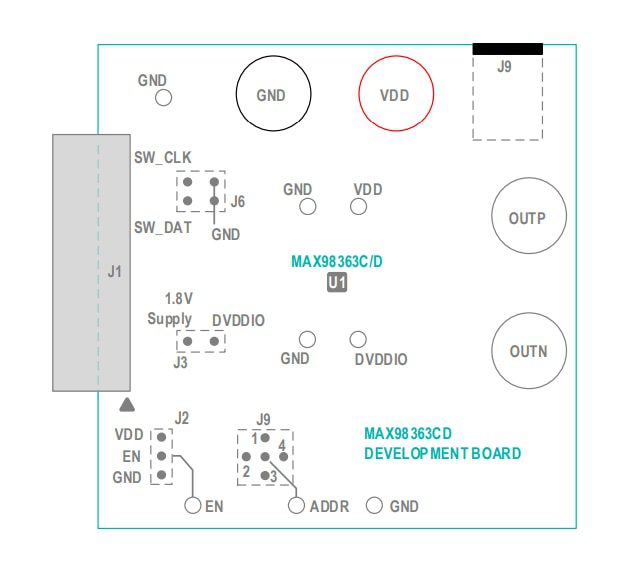

PCB Layout (C/D)
