Analog Devices / Maxim Integrated MAX96717R CSI-2 to GMSL™2 Serializers

Analog Devices MAX96717R CSI-2 to GMSL™2 Serializers accept video on a 4-lane MIPI CSI-2 interface and then outputs it on a GMSL2 serial link transceiver for transport over a coaxial cable. Simultaneously, the device sends and receives bidirectional control channel data via the same GMSL2 link. The GMSL2 link functions at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse order.

The ADI MAX96717R Serializers are programmed through a local I²C interface or via the link from a matching deserializer. Data can be transported over low-cost 50Ω coax cables that fulfill the GMSL2 channel specification.

The MAX96717R offers flexible GPIO tunnels and register-programmed GPIO. Operation is specified over the automotive temperature range of -40°C to +105°C, and the MAX96717R is AEC-Q100 Grade 2 qualified.

Features

Automotive-grade high-speed link
- Supports 19dB insertion loss at 1.5GHz
- Auto adapt for changes in channel conditions
- Operates -40°C to +105°C ambient
4-Lane MIPI CSI-2 v1.3 input port
- MIPI D-PHY v1.2 rated at 600Mbps/lane
- Polarity flip and data-lane reassignment
- Supports 4x virtual channels
Single GMSL2 output
- 3Gbps in GMSL2 forward link-rate
- 187.5Mbps reverse link-rate

Bidirectional control channel supports
- 7x configurable GPIO
- 1x I²C port, up to 1MHz
Reduce BOM and space savings
- Tiny, 5mm x 5mm TQFN
- Small Power over Coax (PoC)

Applications

Advanced Driver Assistance Systems (ADAS)
Surround View Systems (SVS)
Driver Monitor Systems (DMS)

Rear View Camera (RVC)
Systems with multiple synchronized cameras

Analog Devices / Maxim Integrated MAX96717R CSI-2 to GMSL™2 Serializers

Features

Applications

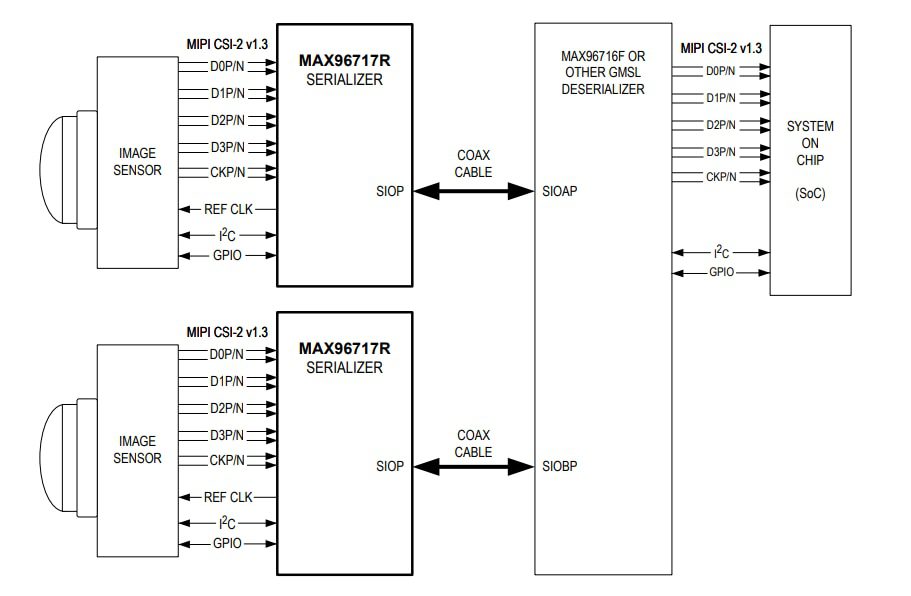

Simplified Application Circuit
