Analog Devices / Maxim Integrated MAX77751 3.15A USB-C Autonomous Charger

Analog Devices MAX77751 3.15A USB-C Autonomous Charger is a 3.15A charger with integrated USB Type-C® CC detection and reverse boost capability. Easily configure the fast-charge current and top-off current thresholds with resistors. The MAX77751 operates with an input voltage of 4.5V to 13.7V. Analog Devices MAX77751 3.15A USB-C Autonomous Charger has a maximum input current limit of 3A. The IC also implements the adaptive input current limit (AICL) function. This regulates input voltage by reducing input current to prevent the voltage of a weak adapter from collapsing or folding back.

Features

Up to 16V Protection
13.7V Maximum Input Operating Voltage
3.15A Maximum Charging Current
6A Discharge Current Protection
No Firmware or Communication Required
Integrated USB Detection
- CC Detection for USB Type-C
- BC1.2 Detection for Legacy SDP, DCP, and CDP
- Automatic Input Current Limit Configuration
- Input Voltage Regulation with Adaptive Input Current Limit (AICL)

Reverse Boost Capability up to 5.1V, 1.5A
Pin Control of All Functions
- Resistor-Configurable Fast-Charge Current
- Resistor-Configurable Top-Off Current
- ENBST Pin to Enable and Disable Reverse Boost
- STAT Pin to Indicate Charging Status
- INOKB Pin to Indicate Input Power-OK (POK)
- ITOPOFF Pin to Disable Charge
Integrated Battery True-Disconnect FET
3mm x 3mm, 24 Lead FC2QFN Package

Applications

Mobile Point-of-Sale (mPOS) Terminals
Portable Medical Devices
Wireless Headphones
GPS Trackers

Charging Cradles for Wearable Devices
Power Banks
Mobile Routers

Analog Devices / Maxim Integrated MAX77751 3.15A USB-C Autonomous Charger

Features

Applications

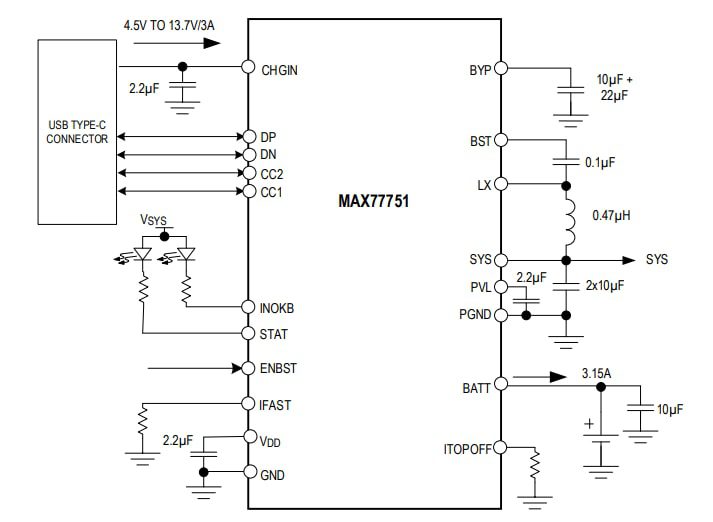

Block Diagram
