Analog Devices / Maxim Integrated MAX77675 SIMO PMIC

Analog Devices MAX77675 SIMO PMIC is a highly efficient, complete power supply engineered for low-power, ultra-compact applications. The MAX77675 offers four programmable buck-boost switching outputs using only one inductor. The device operates from a single lithium-ion or Li-ion battery, producing a total of 700mA output current (3.7V_IN, 1.8V_OUT) housed in less than a 40mm² solution size.

The ADI MAX77675 PMIC features an integrated sequencer that controls a complete startup, while an I²C interface allows dynamic configuration and monitoring. The MAX77675 is part of the single-inductor multiple-output (SIMO) product family.

Features

4x Buck/Buck-Boost/Boost regulators, 1x inductor
2.5V to 5.5V input voltage range
0.5V to 5.5V output voltage range
700mA total output current (3.7V_IN, 1.8V_OUT)
SIMO
I²C interface and dedicated enable pin

Flexible Power Sequencer (FPS)
Up to 90% efficiency, 6.9μA typical I_Q with 2x outputs enabled in low power mode
1.99mm x 1.99mm, 16-bump, 0.5mm pitch WaferLevel Package (WLP), <40mm² solution size

Applications

TWS BLUETOOTH® headphones/hearables
Fitness, health, activity monitors, and smartwatches

Portable devices
Sensor nodes and consumer Internet of Things (IoT)

Analog Devices / Maxim Integrated MAX77675 SIMO PMIC

Features

Applications

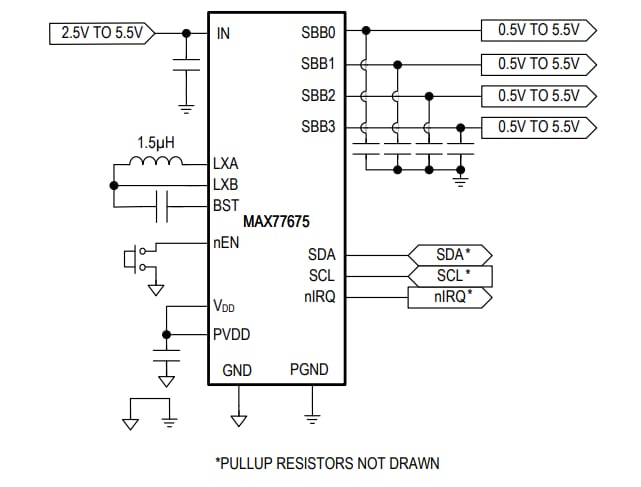

Simplified Block Diagram

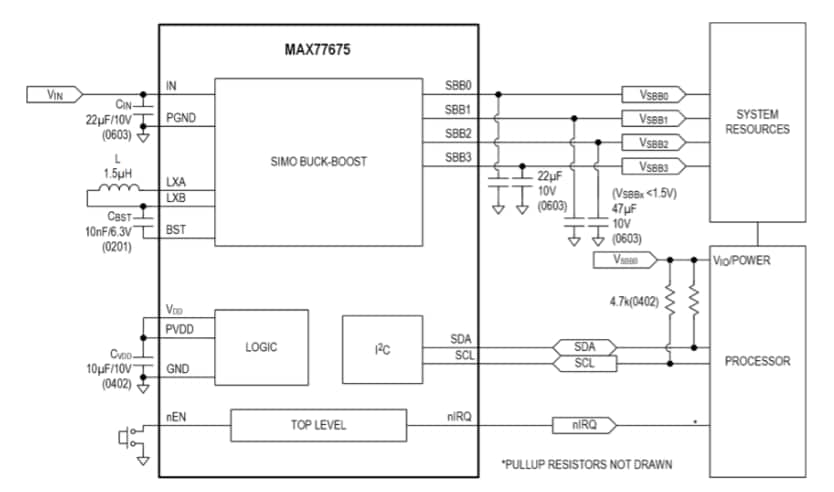

Typical Application Circuit
