Analog Devices MAX77643EVKIT Evaluation Kit is a demonstration and development platform for the MAX77643 Ultra Configurable PMIC. The MAX77643 features a SIMO (Single-Inductor Multiple-Output) buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications.

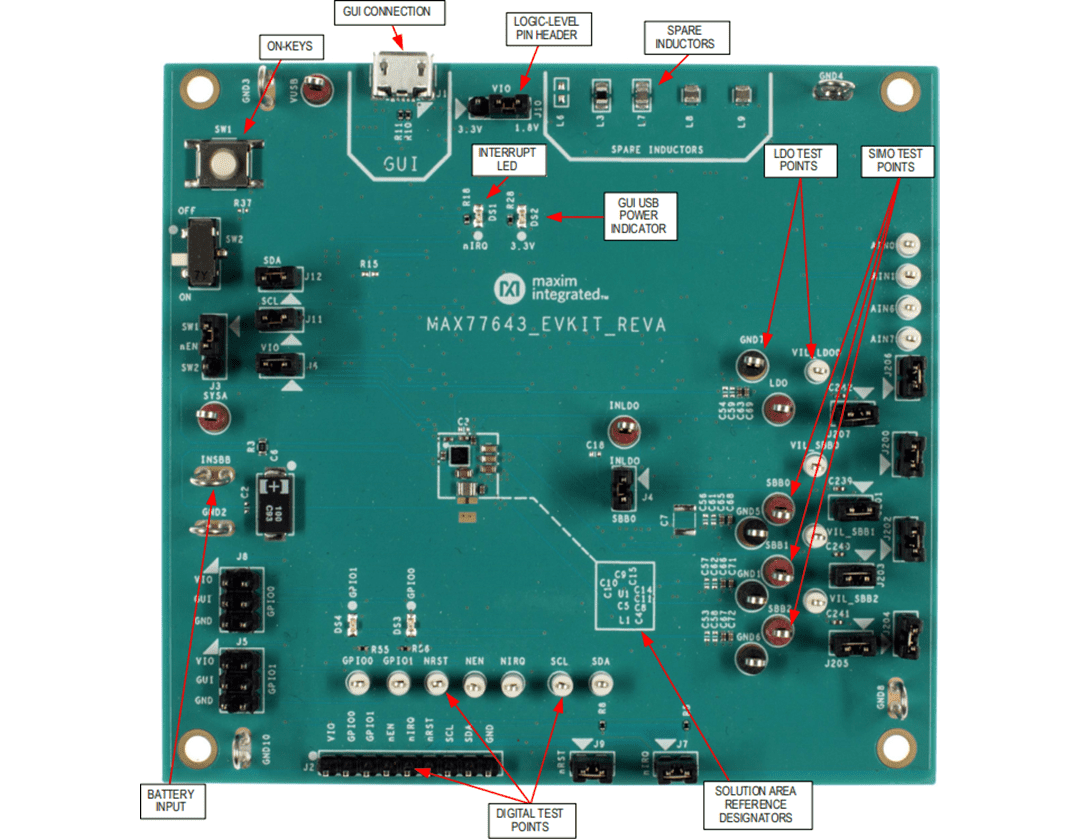

The MAX77643EVKIT Evaluation Kit includes the Analog Devices MAX77643 PMIC in a WLP25 package. The Evaluation Kit allows for easy experimentation with various MAX77643 features, including the SIMO buck-boost regulator, linear regulators, on/off controller, and I2C interface. Windows-based software provides a user-friendly Graphical User Interface (GUI) as well as a detailed register-based interface to exercise the features of the MAX77643.
