Analog Devices / Maxim Integrated MAX77642EVKIT Evaluation Kit

Analog Devices MAX77642EVKIT Evaluation Kit is a platform for evaluating the performance of the MAX77642. The MAX77642 Ultra Configurable PMIC is designed to provide power supply solutions for low-power applications where size and efficiency are critical. The MAX77642EVKIT Evaluation Kit offers a Windows^®-based software that provides a user-friendly graphical interface to manage the onboard electronic loads.

The Analog Devices MAX77642EVKIT Evaluation Kit is easy to use, assembled, and thoroughly tested.

Features

Easy to use
GUI-Driven I²C interface
Assembled and fully tested
On-board electronic loads

Steady-state, transient, and random modes
Demonstration of end-to-end analog multiplexer implementation
On-board ADC

Analog Devices / Maxim Integrated MAX77642EVKIT Evaluation Kit

Features

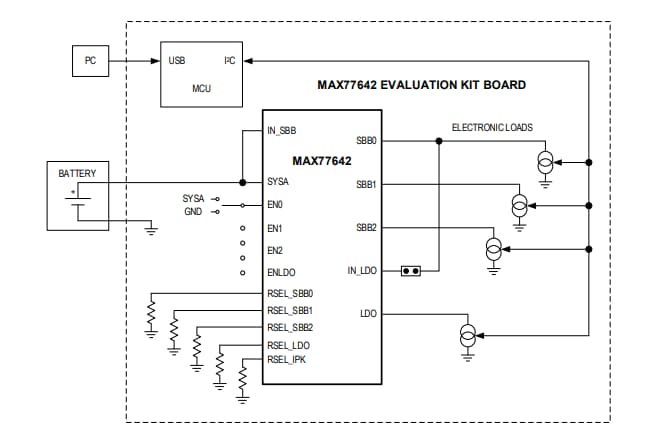

Simple Block Diagram

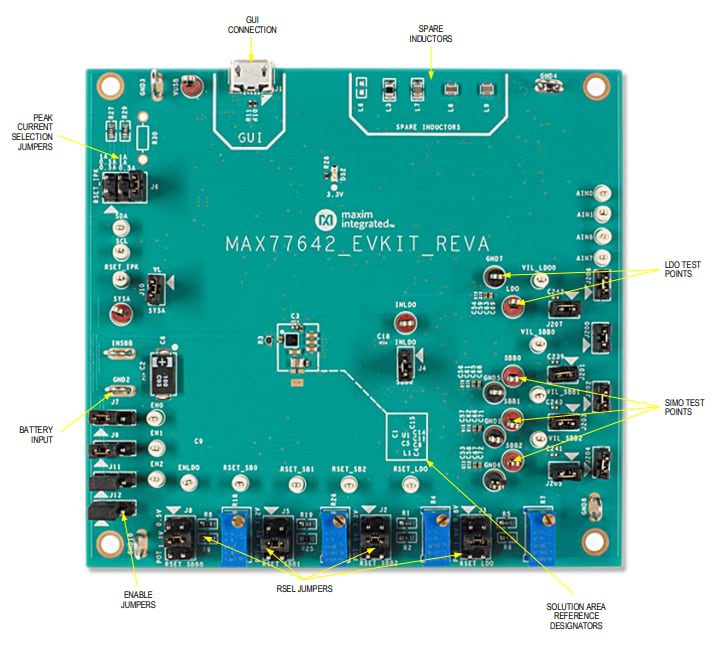

Top Board Layout

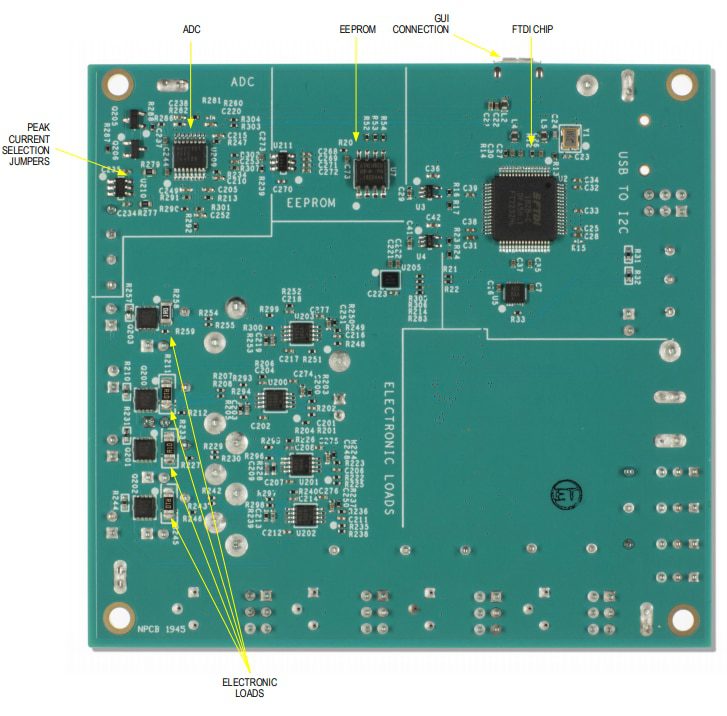

Bottom Board Layout
