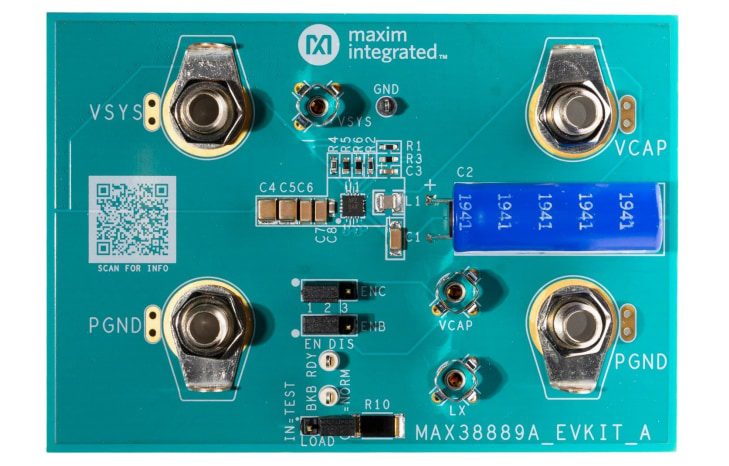

Analog Devices / Maxim Integrated MAX38889A Evaluation Kit

Analog Devices Inc. MAX38889A Evaluation Kit provides a flexible circuit to evaluate the MAX38889 supercapacitor backup regulator. The MAX38889 offers a 2.5V to 5.5V system output voltage range, ±1% threshold accuracy, and 94% peak efficiency in charging or discharging mode.

ADI MAX38889A Evaluation Kit is fully assembled and tested in a compact solution size.

Features

2.5V to 5.5V System output voltage range
0.5V to 5.5V Supercapacitor voltage range
3A Peak charging and backup inductor currents
Resistor-adjustable VSYS, VCAP voltages

Resistor-adjustable charging and backup currents
Proven two-layer, 2oz copper PCB layout
Demonstrates compact solution size
Fully assembled and tested

Required Equipment

MAX38889A Eval Kit
6V, 4A DC Power supply
Two Digital Multimeters (DMM)
