Analog Devices / Maxim Integrated MAX38647B WLP Evaluation Kit

Analog Devices Inc. MAX38647B WLP Evaluation Kit (MAX38647BEVKIT) evaluates the MAX38647B IC in a wafer-level package (WLP). The compact MAX38647B features a 1.8V to 5.5V input range, 440nA IQ, and a 175mA nanoPower buck converter with four-level VSEL. MAX38647BEVKIT provides resistor-configurable output voltages from 0.5V to 1.8V. The MAX38647B can change voltage dynamically using two voltage-select (VSEL) pins. The fully-assembled/tested Analog Devices Inc. MAX38647B WLP Evaluation Kit delivers up to 175mA of output current and comes with the MAX38647BANA+ installed.

Features

Evaluates the MAX38647B IC in an (1.82mm x 0.89mm, 0.4mm pitch) 8-bump WLP package
1.8V to 5.5V input voltage range
0.5V to 1.8V configurable output voltage

Up to 175mA output current
Proven two-layer 1oz copper PCB layout
Demonstrates compact solution size
Fully assembled and tested

Required Equipment

1x MAX38647B WLP EV kit
5.5V, 3A DC power supply

Load capable of sinking 175mA current
Digital voltmeter (DVM)

Analog Devices / Maxim Integrated MAX38647B WLP Evaluation Kit

Features

Required Equipment

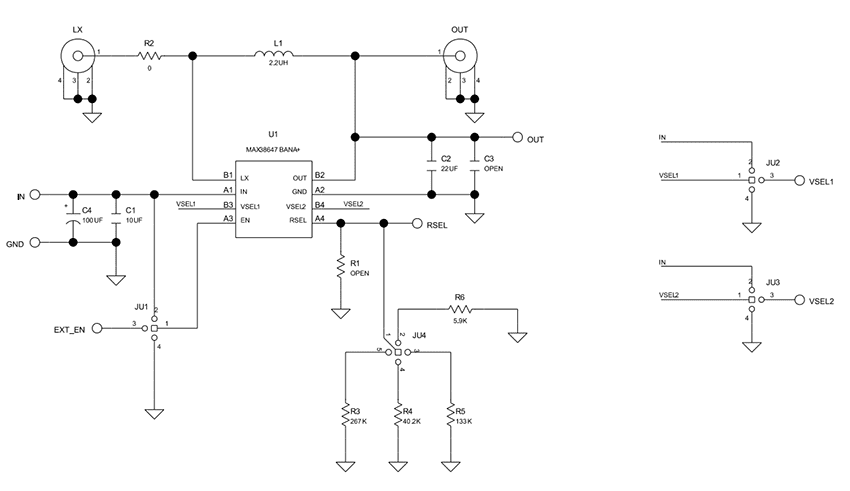

Schematic

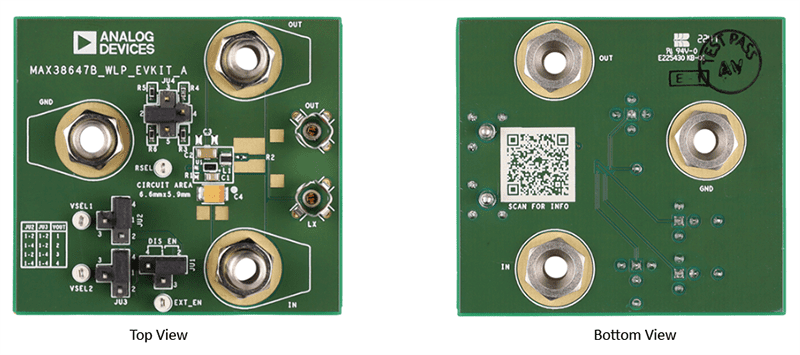

Overview
