Analog Devices / Maxim Integrated MAX34427 High Dynamic Range Power Accumulators

Analog Devices MAX34427 High Dynamic Range Power Accumulators are specialized current, voltage, and power monitors. The MAX34427 is used to determine the power consumption of systems. The device’s wide dynamic range (20,000:1) allows for accurate power measurement. The Analog Devices device is configured and monitored with a standard I²C/SMBus serial interface. The unidirectional current sensor offers precision and high-side operation with a low full-scale sense voltage.

Features

Enables code optimization to minimize power consumption
Two power monitors with a wide 86dB dynamic range
Measures current and voltage
Ability to measure only accumulated current or accumulated power
Reduced power consumption in slow accumulation mode
Power-down mode
Minimizes processor overhead with autonomous operation
Per channel 56-bit power accumulators capture 2.27 hours of data at 2048 samples per second
Per channel 14-bit voltage registers

High-integration solution minimizes part count, PCB space, and BOM cost
5μV to 100mV current-sense voltage with a current common-mode range of 0.5V to 24V
16 programmable I²C addresses
I²C/SMBus interface with Bus timeout
-40°C to +85°C temperature range
Small, 2.24mm x 1.91mm footprint WLP with 12 bumps at 0.5mm pitch and 3mm x 3mm footprint TDFN 12-pin package
Ease of development
Evaluation kit with advanced GUI

Applications

Tablets
Ultra notebooks
Workstations

Servers
VR/AR headsets

Analog Devices / Maxim Integrated MAX34427 High Dynamic Range Power Accumulators

Features

Applications

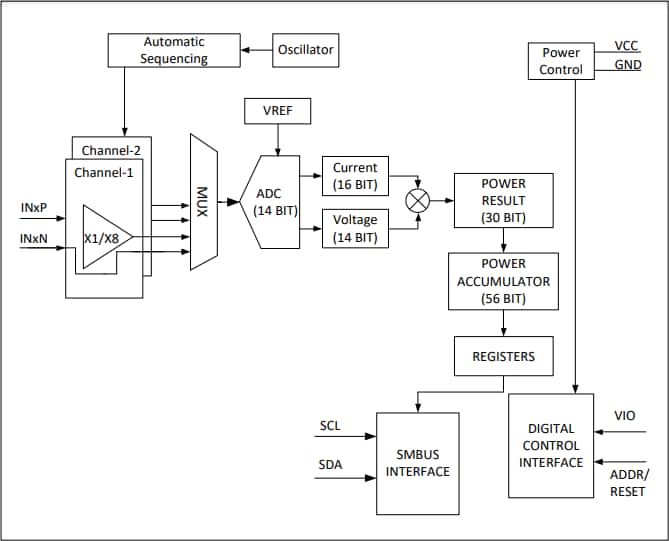

Block Diagram
