Analog Devices / Maxim Integrated MAX32680EVKIT Evaluation Kit

Analog Devices MAX32680EVKIT Evaluation Kit is a demonstration and development platform for the MAX32680 Ultra-Low-Power Wireless Microcontroller (MCU). The MAX32680 is an advanced System-on-Chip (SoC) based on an Arm® Cortex®-M4F core. The MAX32680 features an integrated BLUETOOTH® 5.2 Low Energy (LE) radio, supporting BLE Audio, Angle of Arrival (AoA), and Angle of Departure (AoD) for direction finding, long-range (coded) modes, and high-throughput modes. Analog Devices MAX32680EVKIT Evaluation Kit features a pre-mounted MAX32680 in an LGA-88 package. SMA connectors allow connection to an external Bluetooth antenna and enable access to the analog inputs. A 10-pin JTAG connector enables debugging, and test points are available for all key signals. User feedback is provided by status LEDs and an onboard 1.45″ color TFT display.

Features

SMA connector for attaching an external Bluetooth antenna
128 x 128 (1.45″) color TFT display with SPI interface
Two selectable onboard, high-precision voltage references
USB 2.0 micro B to serial UARTs
UART1 and LPUART0 interface is selectable through onboard jumpers
All GPIOs signals accessed through 1″ headers
Access to four analog inputs through SMA connectors configured as a differential
Access to eight analog inputs through 1″ headers configured as single-end

Optional discrete filter for the twelve analog inputs
DAC accessed through SMA connector or test point
10-pin SWD connector
10-pin RV JTAG connector
Board power provided by USB port
Onboard 3V LDO regulator to power MAX32680 internal SIMO
Test loops provided to supply optional VCORE power externally
Individual power measurement on all IC rails through jumpers
Two general-purpose LEDs and two general-purpose pushbutton switches

Analog Devices / Maxim Integrated MAX32680EVKIT Evaluation Kit

Features

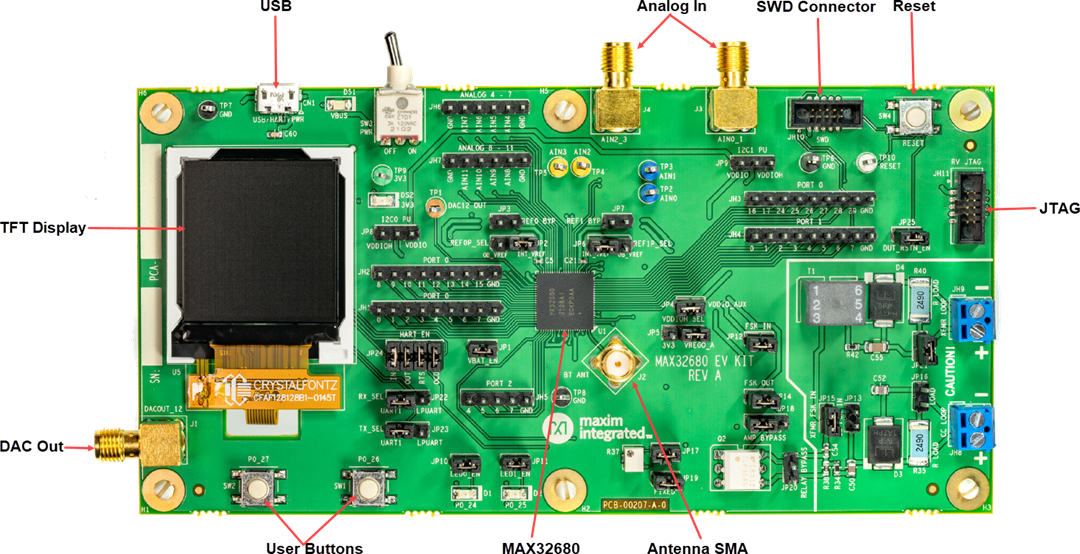

Board Layout
