Analog Devices / Maxim Integrated MAX32670EVKIT Evaluation Kit

Analog Devices MAX32670EVKIT Evaluation Kit is a platform for evaluating the performance of the MAX32670. The MAX32670 implements designs with complex sensor processing while not compromising battery life. The MAX32670 combines a flexible and adaptable power management unit with the powerful Arm^® Cortex^®-M4 processor that includes the floating-point unit (FPU).

The Analog Devices MAX32670EVKIT Evaluation Kit contains the MAX32670 and includes one standard A to micro B USB cable.

Features

USB 2.0 micro B to serial UART bridge
UART0 and UART3 interface is selectable through on-board jumpers
On-board MAX32625PICO-based debugger
Boot load enable circuitry
SPI and I²C Signals accessed through 0.1in headers

GPIOs and miscellaneous signals accessed through 0.1in headers
Board power provided by USB port
On-board SIMO regulator and LDO for IC and peripherals
Individual power measurement on all IC rails through jumpers
Two general-purpose LED and one general-purpose pushbutton switch

Kit Contents

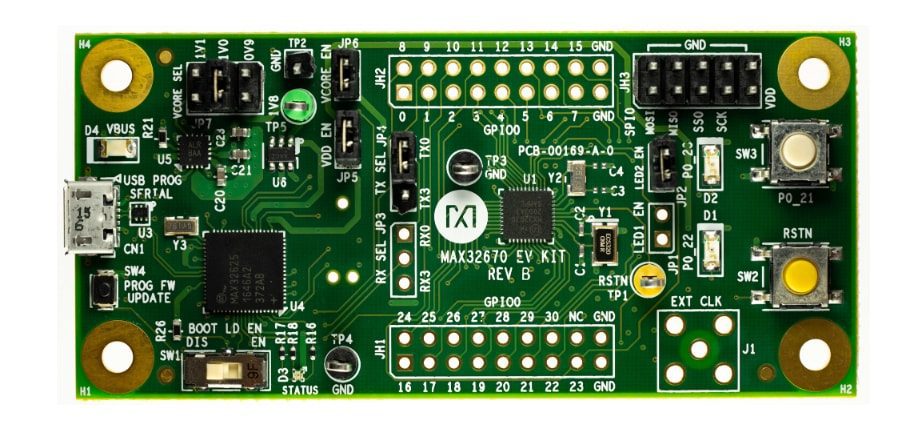

MAX32670 EV kit containing a MAX32670

One standard A to micro B USB cable

Required Equipment

MAX32670 EV kit

One standard A to micro B USB cable

Overview

Analog Devices / Maxim Integrated MAX32670EVKIT Evaluation Kit

Software

Analog Devices Microcontroller Software Development Kit (SDK)
