Analog Devices / Maxim Integrated MAX32655 Evaluation Kit

Analog Devices MAX32655 Evaluation Kit is a demonstration and development platform for the MAX32655 Low-Power Wireless Microcontroller. The MAX32655 is an advanced System-on-Chip (SoC) featuring an Arm® Cortex®-M4F CPU and integrated BLUETOOTH® 5.2.

The MAX32655 Evaluation Kit includes an Evaluation Board with a pre-mounted MAX32655 Microcontroller, along with a 320 x 240 color TFT resistive touch display for ease of use. A MAX32625PICO Debugger, JTAG Debugger, and all required cables are also included. 0.1″ headers enable easy access to all GPIOs and analog inputs.

Features

Pre-mounted MAX32655 Low-Power Wireless Microcontroller
External Bluetooth antenna with SMA interface
Stereo audio codec with line-in and line-out 5mm jacks
Digital microphone
320 x 240 color TFT resistive touch display with an SPI interface
128Mb quad SPI flash
USB 2.0 micro-B to serial UARTs
UART0 and LPUART interface selectable through onboard jumpers

All GPIOs signals accessed through 0.1″ headers
Access to the eight analog inputs through 1″ headers
10-pin SWD and RV JTAG connectors
Board power provided by USB port
Onboard 1.8V and 3.3V LDO regulators
MAX32655 can be solely sourced by the coin cell battery
Individual power measurement on all ic rails through jumpers
Two general-purpose LEDs and two general-purpose pushbutton switches

Kit Contents

MAX32655 Evaluation Board with MAX32655 loaded with a pre-programmed Demo
One external Bluetooth antenna
MAX32625PICO Debugger with cables

JTAG Debugger with ribbon cable
One USB standard-A to micro-B cable
One USB standard-A to standard-B cable

Analog Devices / Maxim Integrated MAX32655 Evaluation Kit

Features

Kit Contents

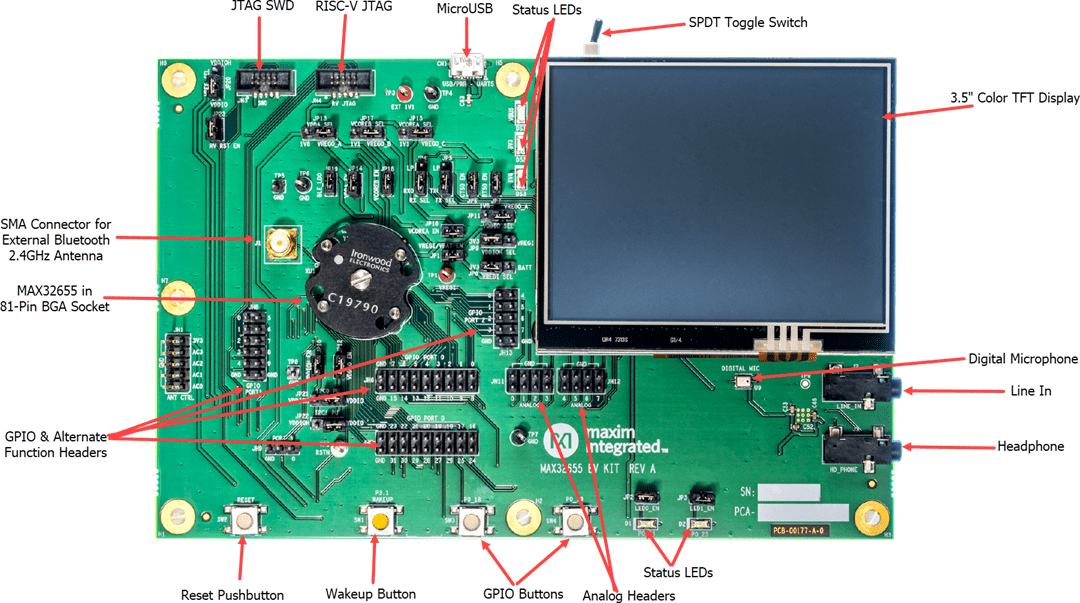

Board Layout
