Analog Devices / Maxim Integrated MAX31828 Low-Power Temperature Switches

Analog Devices MAX31828 Low-Power Temperature Switches provide ±1°C accuracy from -40°C to +125°C (12 bits). These switches have an I²C/SMBus interface and are housed in a small 6-bump wafer-level package. The devices have high accuracy and are ideal for many applications. The Analog Devices MAX31828 is used as a temperature switch with preconfigured thresholds and/or as a temperature sensor with an I²C interface.

Features

Stand-alone temperature switch with preconfigured alarm thresholds and hysteresis
Active high/active low/open drain ALARM output
Excellent temperature accuracy
Maximum ±1.75°C from -45°C to +145°C
Maximum ±1°C from -40°C to +125°C (12 bits)
External resistor selects an address for location identification
Temperature resolution is selectable from 8 to 12 bits

Selectable timeout prevents Bus lockup (default enabled)
I²C and SMBus support
User-defined alarm settings
Selectable PEC for reliable communications
Up to 1MHz Bus speed
+1.6V to +3.6V power supply voltage

Applications

Battery-powered equipment
Handheld electronics
Data communications equipment

Servers
Industrial equipment

Analog Devices / Maxim Integrated MAX31828 Low-Power Temperature Switches

Features

Applications

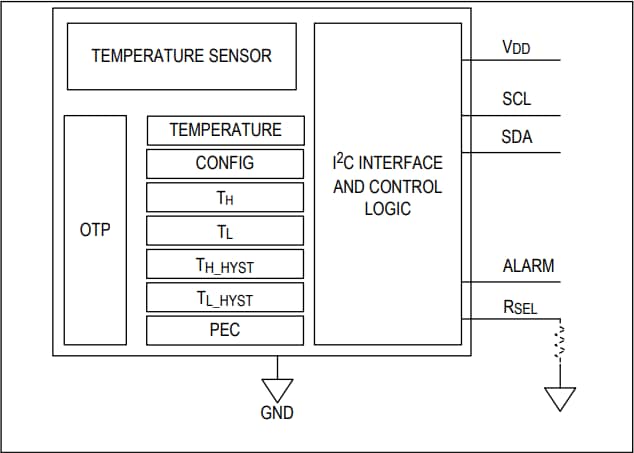

Simplified Block Diagram
