Analog Devices / Maxim Integrated MAX25510 & MAX25511 Integrated Boost Converters

Analog Devices MAX25510 and MAX25511 Integrated Boost Converters are 4-channel, white-LED backlight drivers. These Analog Devices converters have an integrated current-mode boost converter that operates over a switching frequency range of 400kHz to 2.2MHz and incorporates a spread spectrum. Phase-shifting of the output channels is included as an option to further reduce EMI.

Features

Operate down to 3V on Battery Input after Start-Up
- Wide Boost Duty Cycle to Support Low Input Voltage
Boost or SEPIC Current-Mode DC-DC Controller
- 400kHz to 2.2MHz Operating Frequency Range
- Spread Spectrum Available
- Can Be Synchronized to an External Clock
LED Current Sinks
- Up to 120mA Output Current per String
- Low OUT_ Regulation Voltage for Best Efficiency
- Optional Phase-Shifting of Outputs

16667:1 Dimming Ratio at 200Hz
NTC Input for LED Current Foldback
Analog Dimming Capable
Built-In Automatic Fading Functionality
FLTB Output Provides Diagnostic Information
- Shorted or Open LEDs
- Thermal Shutdown
- Output Undervoltage
Compact, 4mm x 4mm TQFN Package
AEC-Q100 Grade 1

Applications

Automotive Instrument Clusters
Automotive Central Information Displays
Automotive Head-Up Displays

Analog Devices / Maxim Integrated MAX25510 & MAX25511 Integrated Boost Converters

Features

Applications

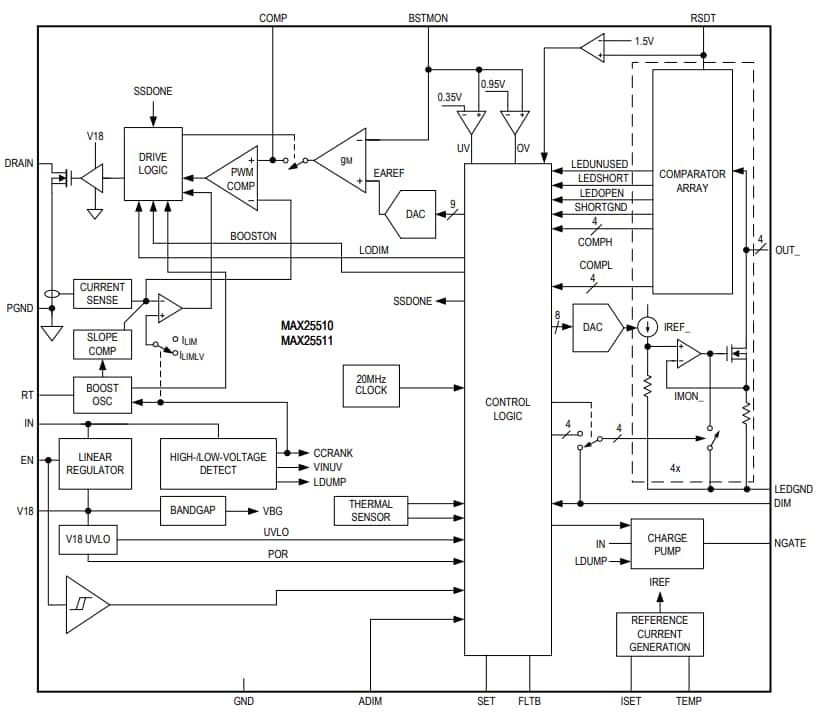

Block Diagram
