Analog Devices / Maxim Integrated MAX25400EVKIT Evaluation Kit

Analog Devices Inc. MAX25400EVKIT Evaluation Kit facilitates the evaluation of the MAX25400 Automotive Hi-Speed USB 2.0 Protector. The MAX25400 Automotive Hi-Speed USB 2.0 Protector is designed for high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications.

The MAX25400EVKIT Evaluation Kit is powered by the USB BUS, and an onboard MAX15007A automotive regulator provides the IN reference voltage. The user can present a 3V to 3.6V IN reference voltage across the VIN and GND PCB pads.

Features

Protects D+ and D-signals from overvoltages up to 18V and ESD events
USB BUS Undervoltage lockout
Passes 480Mbps USB data signals
Low on-resistance
3.3Ω (typ) D+ and D-

FAULT Output signal
USB powered
Fully assembled and tested
Evaluates the MAX25400 IC in a 12-Pin TQFN package

Required Equipment

MAX25400 EV kit
5V, 2A DC power supply (Supply A)
18V, 2A DC power supply (Supply B)

Logic function generator
Oscilloscope

Analog Devices / Maxim Integrated MAX25400EVKIT Evaluation Kit

Features

Required Equipment

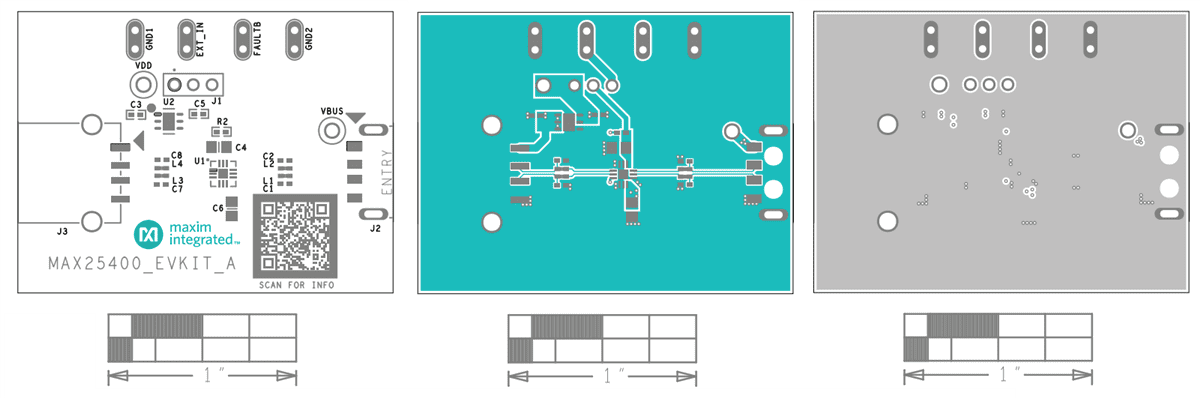

PCB Layout
