Analog Devices / Maxim Integrated MAX25301A/B Automotive LDO Linear Regulators

Analog Devices Inc. MAX25301A/B Automotive LDO Linear Regulators deliver up to 1A of output current with only 7µVRMS of output noise from 10Hz to 100kHz. The regulators maintain ±1% output accuracy over a wide input-voltage range. The LDO linear regulators require only 100mV of input-to-output headroom at full load. The 1200µA no-load supply current is independent of dropout voltage.

Features

1.7V to 5.5V Input Voltage Range
0.6V to 5.3V Programmable Output Voltage
7µVRMS Output Noise, 10Hz to 100kHz
1200µA Operating Supply Current
70dB PSRR at 10kHz
1A Maximum Output Current
±1% DC Accuracy Over Load, Line, and Temperature
100mV Maximum Dropout at 1A Load
<1µA Shutdown Supply Current

Stable with 4µF(min) Output Capacitance
Programmable Soft-Start Rate
Overcurrent and Overtemperature Protection
Output-to-Input Reverse-Current Protection
Power-OK Output
3mm x 3mm 10-pin TDFN Package
AEC-Q100
-40°C to 125°C Operating Temperature

Applications

Automotive Electronics
Audio Systems
High-Resolution Data Acquisition Systems

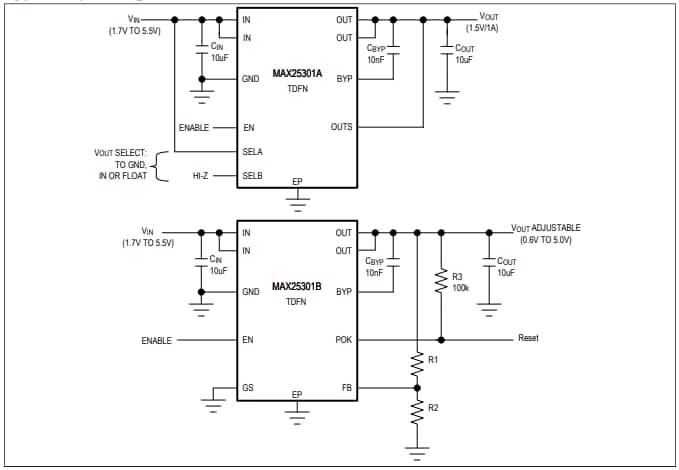

Typical Operating Circuits
