Analog Devices / Maxim Integrated MAX25300A & MAX25300B LDO Linear Regulators

Analog Devices Inc. MAX25300A and MAX25300B LDO Linear Regulators provide up to 500mA of output current with only 12μVRMS of output noise from 10Hz to 100kHz. The MAX25300A and MAX25300B Regulators maintain ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 365μA no-load supply current is independent of dropout voltage.

ADI MAX25300A and MAX25300B LDO Linear Regulators offer 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V pin-selectable output voltages. The MAX25300B has a resistor adjustable output voltage in the range of 0.6V to 5.3V. The MAX25300B also includes an active-high POK output.

The MAX25300A and MAX25300B Regulators are offered in an 8-pin TDFN package.

Features

1.7V to 5.5V Input voltage range
0.6V to 5.3V Output voltage range
12μVRMS Output noise, 10Hz to 100kHz
365μA Operating supply current
70dB PSRR at 10kHz
500mA Maximum output current
±1% DC accuracy over load, line, and temperature
100mV (Max) dropout at 500mA load (3.6V_IN)

<0.1μA Shutdown supply current
Stable with 2μF(Min) output capacitance
Programmable soft-start rate
Overcurrent and overtemperature protection
Output-to-input reversed current protection
POK Output
2mm x 2mm 8-pin TDFN package
AEC-Q100
-40°C to 125°C Operating temperature

Applications

Automotive electronics
Audio systems
High-resolution data acquisition systems

Analog Devices / Maxim Integrated MAX25300A & MAX25300B LDO Linear Regulators

Features

Applications

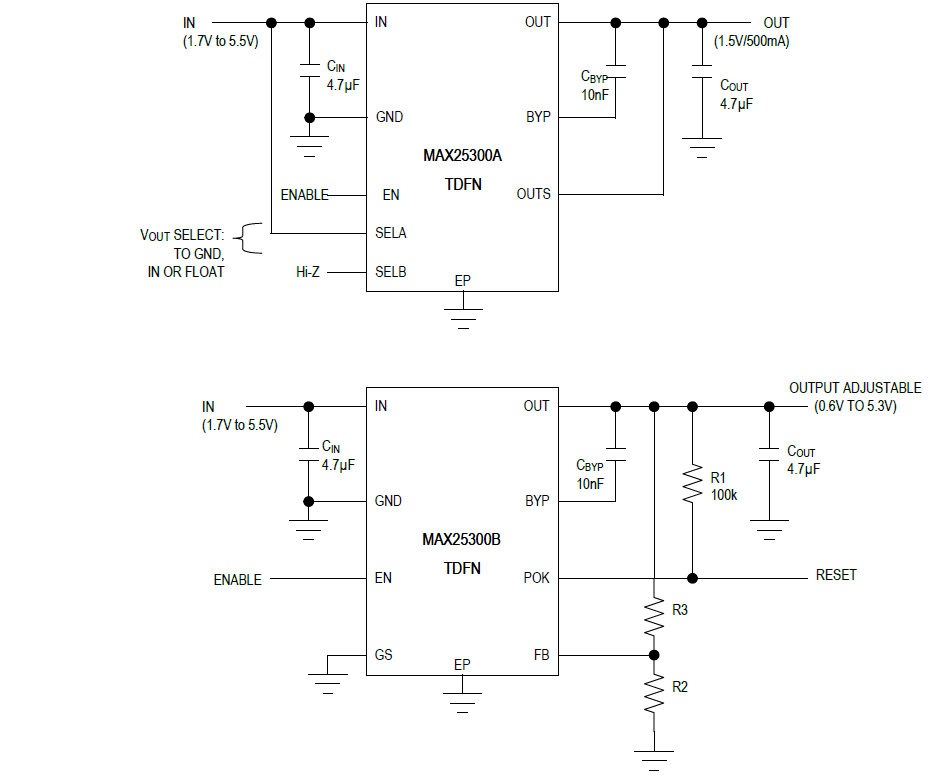

Typical Operating Circuits
