Analog Devices / Maxim Integrated MAX25255DUALEVKIT Evaluation Kit

Analog Devices MAX25255DUALEVKIT Evaluation Kit is a dual-phase EV kit that offers a proven design to evaluate the MAX25255. The MAX25255 automotive 2MHz synchronous buck converter provides integrated high-side and low-side switches. The MAX25255DUALEVKIT has a MAX25255DAFDA/ VY+ (3.3V/2MHz) installed, along with various test points and jumpers for evaluation. The MAX25255DUALEVKIT Kit supports up to 12A with an input voltage of 3V to 36V. The output voltage quality is monitored by observing the PGOOD1 signal. Analog Devices MAX25255DUALEVKIT evaluation kit can also evaluate other MAX25255 variants with minimal component changes.

Features

Input supply range from 3V to 36V
Buck provides 3.3V fixed output and is adjustable from 0.8V to 14V
Delivers up to 12A/16A output current
Selectable BIAS LDO input source
Frequency-synchronization input

Independent enable inputs
Spread-spectrum available
Voltage monitoring PGOOD output available
Proven PCB layout
Fully assembled and tested

Applications

Front-end power supply for head units
ASIL
General-purpose dual buck converters

Telematics modules
Front camera power

Required Equipment

MAX25255 dual-phase EV kit
Appropriate resistive loads or electronic loads that can sink 16A (EL)

36V, 16A DC power supply (PS)
Digital multimeter (DMM)

Analog Devices / Maxim Integrated MAX25255DUALEVKIT Evaluation Kit

Features

Applications

Required Equipment

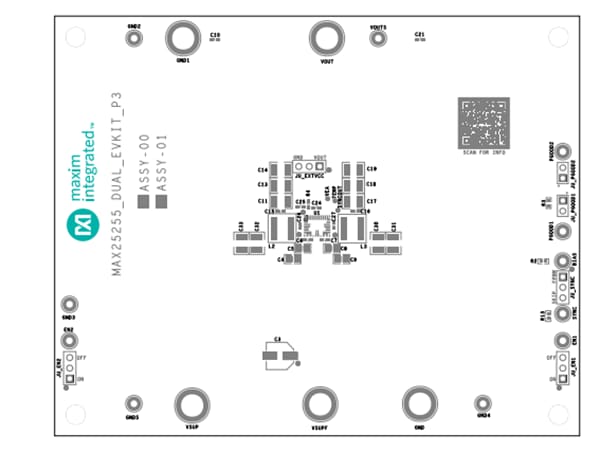

PCB Layout
