Analog Devices / Maxim Integrated MAX25210EVKIT Evaluation Kit

Analog Devices Inc. MAX25210EVKIT Evaluation Kit is a platform for evaluating the performance of the MAX25210. The MAX25210 Automotive Current Linear Regulator operates from a +3.5V to +30V input voltage, delivers up to 300mA of load current, and consumes only 10µA of typical quiescent current at no load.

ADI MAX25210EVKIT Evaluation Kit can be configured as either fixed output voltage (3.3V or 5V) or adjustable output voltage using an external resistive voltage divider.

Features

Enables system designers to meet stringent module requirements for 100μA quiescent current
Low 10μA quiescent current
300mA Output-current capability (300mA, 200mA, 100mA, and 50mA variants)
User-selectable output voltage (3.3V or 5V fixed and 0.6V to 11V adjustable with external resistive voltage divider)
Tiny output capacitors reduce board space and bom cost
Stable operation with 2.2μF output capacitor
Accurate RESET output with adjustable delay eliminates need for separate reset IC
Open-drain RESET output with adjustable delay

87.5% or 93.5% Fixed-reset threshold options
Operates through cold-crank conditions
Low-dropout voltage of 280mV at 200mA
3.5V to 36V Wide input voltage range, 40V load dump tolerant
Robust performance in automotive environment
Thermal and short-circuit protection
High-voltage enable input (40V load-dump tolerant)
Operating -40°C to +125°C temperature range
Automotive qualified AEC-Q100

Required Equipment

MAX25210 EV kit
5V to 40V, 300mA DC power supply

Passive or electronic load capable of sinking 300mA
Digital multimeter (DMM)

Analog Devices / Maxim Integrated MAX25210EVKIT Evaluation Kit

Features

Required Equipment

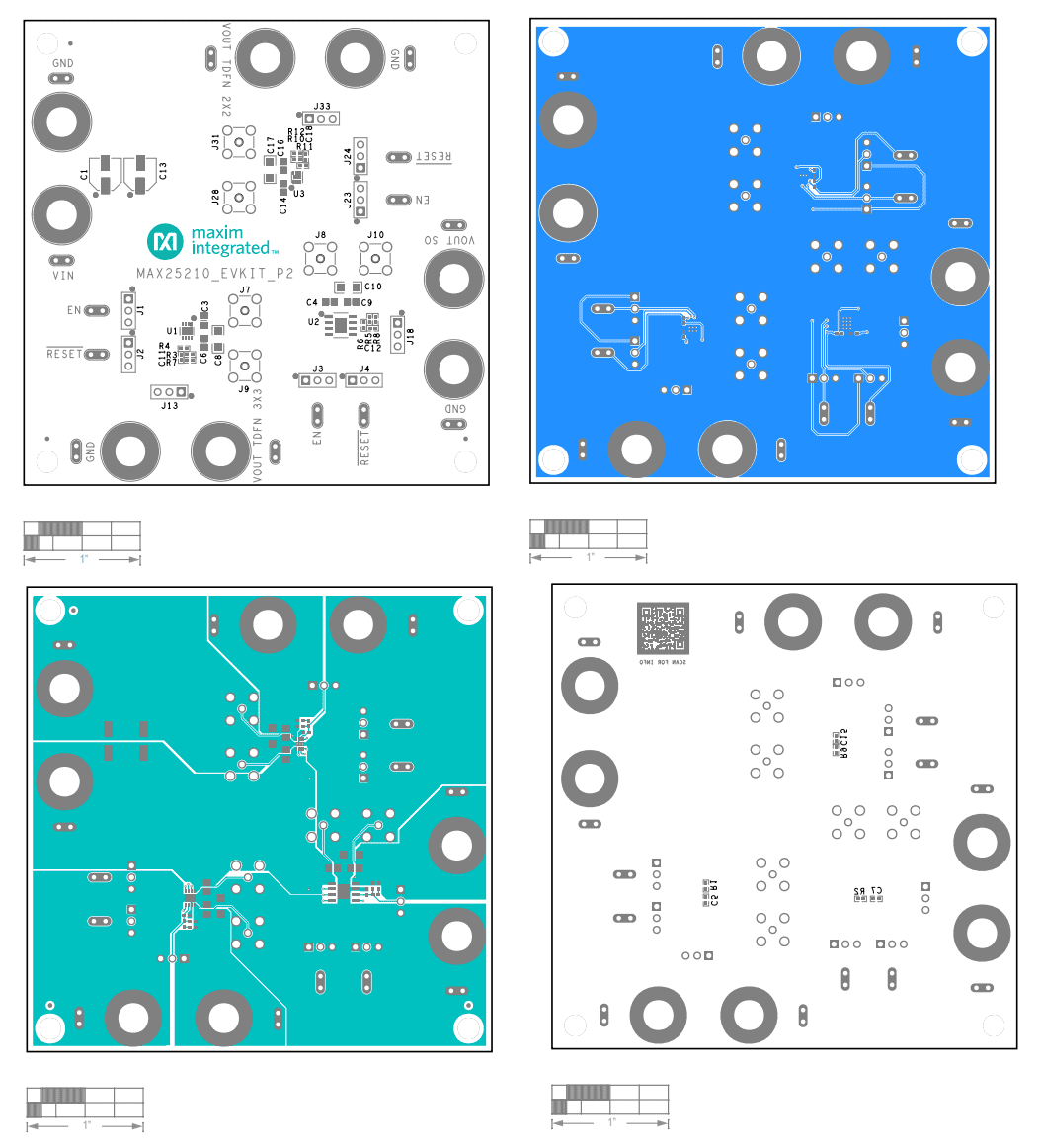

PCB Layout
