Analog Devices / Maxim Integrated MAX2253x Evaluation Kit

Analog Devices Inc. MAX2253x Evaluation Kit provides the hardware and software necessary to evaluate the MAX22530 quad-channel isolated ADC with field supply. The graphical user interface (GUI) running on a PC through a USB port communicates to the MAX2253x Evaluation Kit. The Maxim MAX2253x Evaluation Kit comes with the MAX22530AWE+ (16 WSOIC) device installed.

Features

Easy evaluation of MAX22530/MAX22531
EV kit is USB powered, no field -side supply required
All input accessible
Proven PCB layout

Windows 7, Windows 8.1, and Windows 10-compatible software
Fully assembled and tested
RoHS Compliant

Required Equipment

MAX2253x EV kit
Micro-USB cable
Windows 10, Windows 8.1, and Windows 7 with a spare USB port

Multimeter
DC voltage supply (up to 120V, 0.01A, or higher)

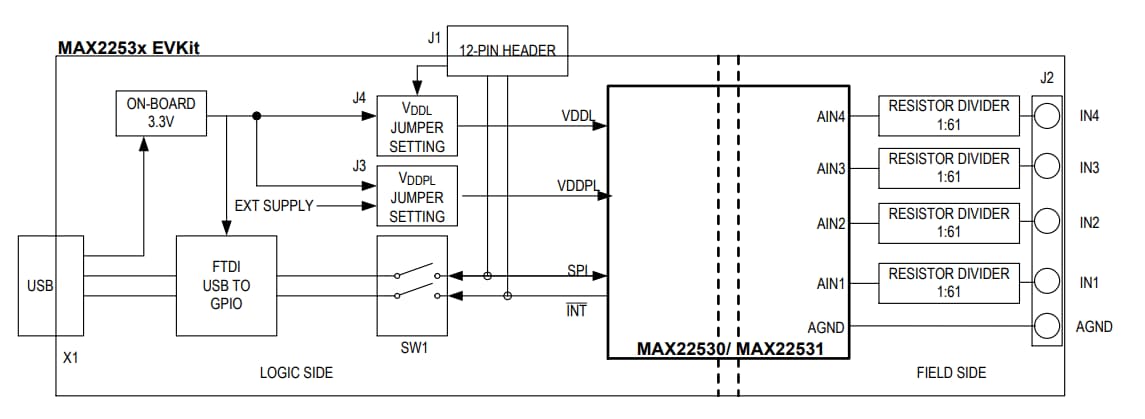

Block Diagram

Block Diagram - Analog Devices / Maxim Integrated MAX2253x Evaluation Kit
