Analog Devices / Maxim Integrated MAX22204EVKIT Motor Driver Evaluation Kit

Analog Devices MAX22204EVKIT Motor Driver Evaluation Kit provides a proven design to evaluate the MAX22204, a +65V, 3.8A (peak) 2-phase stepper motor driver. The evaluation kit can drive a single stepper motor and provides an onboard microcontroller (MCU) and Graphical User Interface (GUI) to drive the Analog Devices MAX22204’s inputs and configure the modes of operation. Microstep modes, decay modes, target speeds, and acceleration can also be configured using the GUI.

Features

Easy evaluation of the MAX22204 stepper motor driver
Onboard MCU and GUI to drive and configure the MAX22204
- Configurable target speed
- Configurable acceleration profiles
- Configurable micro-stepping and decay modes
- Motor coil current reporting
- Configurable full-scale current

Onboard +3.3V regulator to supply I/Os of the MAX22204
Perforated board and headers allow for separation of MAX22204 circuit
Windows 7®/8®/10®-compatible software
Fully assembled and tested
Proven PCB layout

Required Equipment

MAX22204EVKIT
USB Type-A to micro-USB Type-B male cable

Up to +65V DC, 3.8A power supply
Stepper motor

Analog Devices / Maxim Integrated MAX22204EVKIT Motor Driver Evaluation Kit

Features

Required Equipment

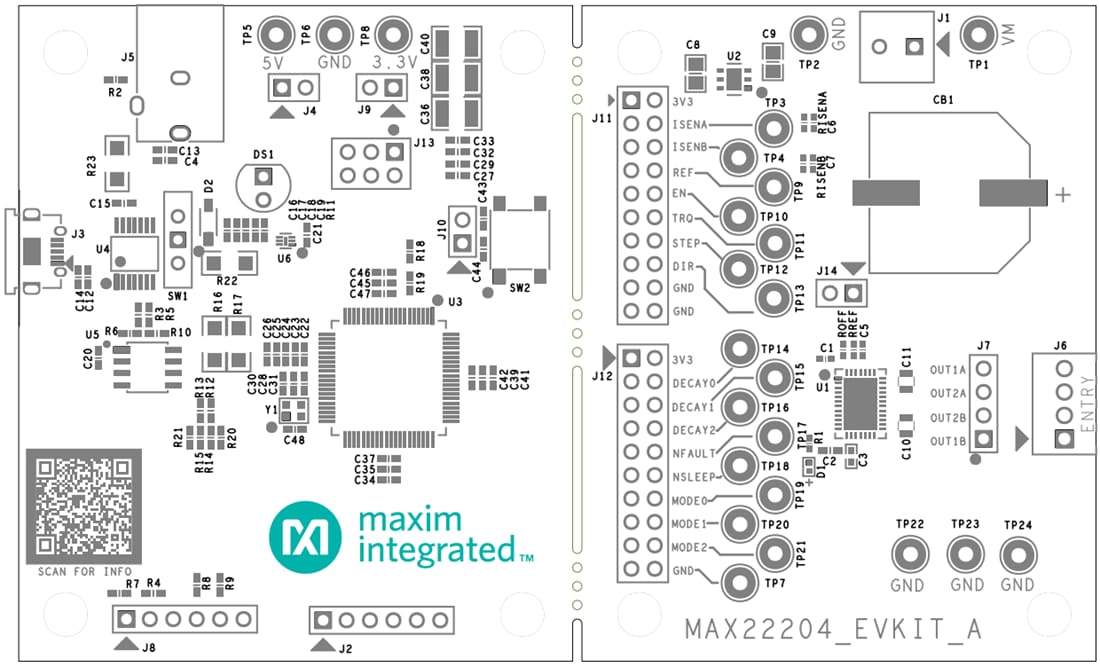

Board Layout
