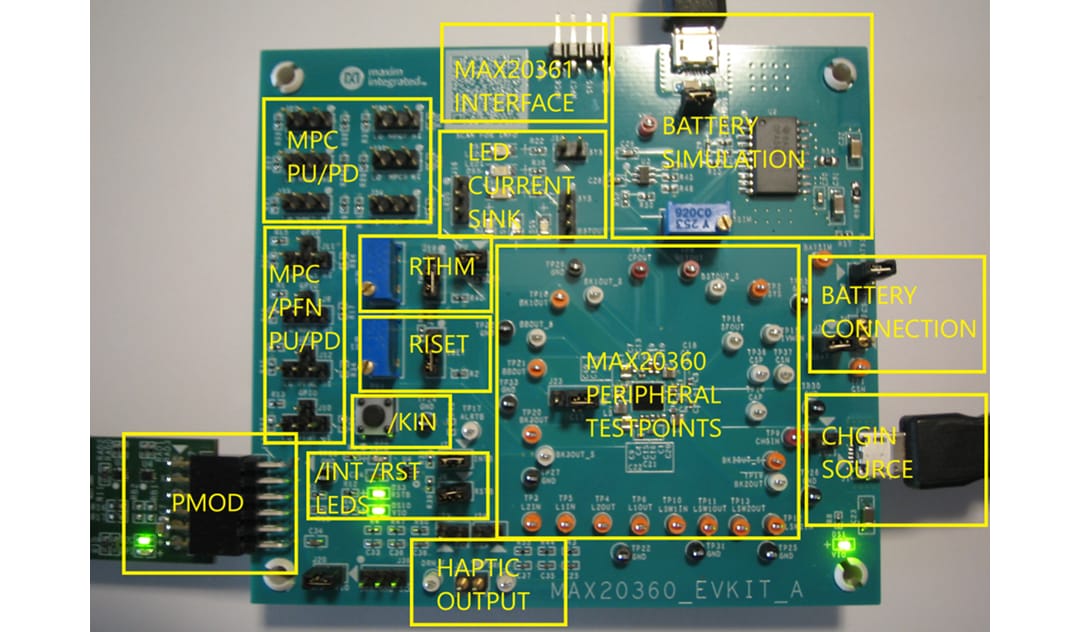

Analog Devices MAX20360 Evaluation Kit (MAX20360EVKIT) is a demonstration and development platform for the MAX20360 Ultra Low-Power Wearable PMIC. The Evaluation Board features a Pmod™ connector, allowing the included USB2PMB2 adapter board to provide an I2C interface. The Analog Devices MAX20360EVKIT features an adjustable LED current sink and battery simulation, a test point for output-voltage measurement, and a filter test point for haptic-waveform measurement.
The MAX20360EVKIT software provides an easy-to-use Graphics User Interface (GUI) to accelerate configuration and evaluation of the MAX20360 Ultra Low-Power Wearable PMIC. This Microsoft Windows-based application communicates to the Evaluation Kit via the USB2PMB2 Adapter. The GUI enables the user to demonstrate the features of the target IC, such as the charger, buck and buck-boost regulators, load switches, haptic driver, and more.
