Analog Devices / Maxim Integrated MAX20337 Evaluation Kit

Analog Devices Inc. MAX20337 Evaluation Kit is a fully assembled and tested circuit board that evaluates the MAX20337 beyond-the-rails SPDT analog switches. The MAX20337ENT+ SPDT Analog Switch is installed on the MAX20337 Evaluation Kit.

Features

USB power option
SMA and 3.5mm audio jack connectors
Directly evaluate AC characteristics through SMA connectors

Quickly evaluate audio performance with 3.5mm audio jack connectors
Proven PCB layout
Fully assembled and tested

Required Equipment

MAX20337 Eval kit
USB Cable or Power Supply

Audio source (e.g., MP3 player, computer, etc.)
External speakers or headphones with 3.5mm audio jack

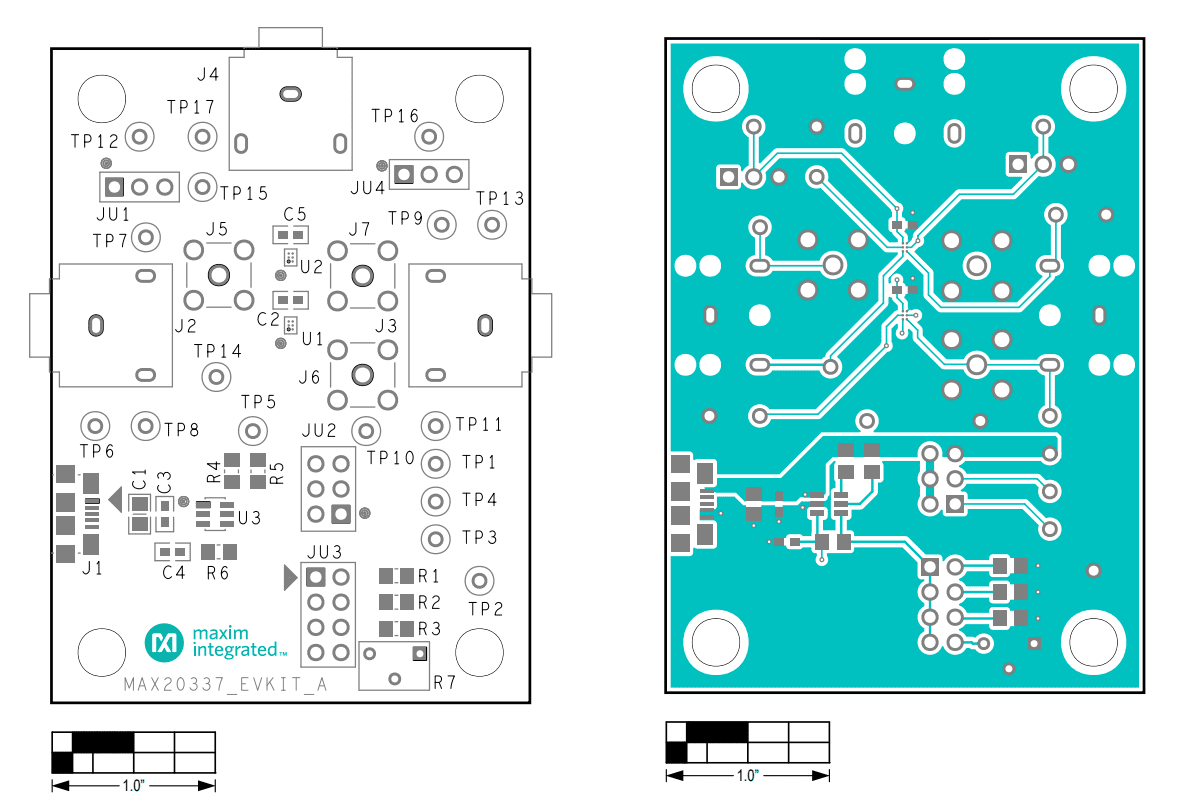

PCB Layout
