Analog Devices / Maxim Integrated MAX20028EVKIT Evaluation Kit

Analog Devices MAX20028EVKIT Evaluation Kit is a fully assembled and tested circuit for evaluating the MAX20028 power-management IC (PMIC). The MAX20028 Power Management Integrated Circuit (PMIC) is a 2.1MHz, multichannel, DC-DC converter designed for automotive applications. The Evaluation Kit includes one high-voltage step-down controller and two low-voltage step-down converters.

The ADI MAX20028EVKIT Evaluation Kit operates from 3.5V to 36V input voltages and is optimized for automotive infotainment applications. The high-voltage controller is configured for a 5V output that provides at least 5A. The low-voltage step-down converters are configured for 3.3V and 1.2V, each providing up to 3A.

The MAX20028EVKIT Evaluation Kit can be easily reconfigured to operate in continuous PWM mode, skip mode, or external synchronization operation. The Evaluation Kit includes the MAX20028ATJA/VY+ PMIC and is capable of evaluating other variants of the MAX20028 IC.

Features

3.5V to 36V input range
20µA Quiescent current with DC-DC controller enabled
Output voltages
- 5V Output at 5A (high-voltage, step-down controller, Buck 1)
- 3.3V Output at 3A (step-down converter, Buck 2)
- 1.2V Output at 3A (step-down converter, Buck 3)

High-frequency operation
- 2.1MHz or optional divide-down operation for buck 1
Individual enable inputs and reset outputs
Proven PCB layout
Fully assembled and tested

Required Equipment

MAX20028 EV kit
3.5V to 36V, 4A DC power supply
Voltmeter

Analog Devices / Maxim Integrated MAX20028EVKIT Evaluation Kit

Features

Required Equipment

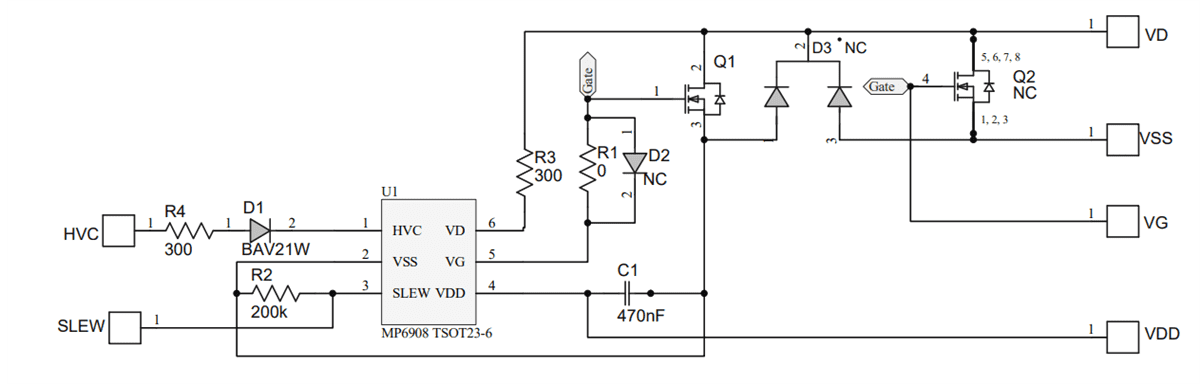

Schematic
