Analog Devices / Maxim Integrated MAX1800x Evaluation Kits

Analog Devices Inc. MAX1800x Evaluation Kits feature pre-installed MAX18000AWT+ (nanopower version) or MAX18002AWT+ (ultrasonic variant) Boost Converters. The fully assembled and tested printed circuit board (PCB) operates with a 1.8V to 5.5V input voltage range, a switch current limit of 3.6A, and an output voltage adjustable between 2.5V and 5.5V. These Analog Devices Inc. evaluation boards have test points and jumpers for testing device functionality. Probing holes on critical nodes (OUT and LX) provide precise measurements.

Features

Pre-installed with MAX18000AWT+ or MAX18002AWT+
1.8V to 5.5V input voltage range
Test points for INS, OUTS, and GNDS

Output voltage adjustable between 2.5V to 5.5V (in 100mV steps)
Sense sockets at LX and OUT
Fully assembled and tested

Required Equipment

Adjustable DC power supply
4x digital multimeters
Electronic load

Components

MAX18000WEVKIT# – Features a pre-installed MAX18000AWT+ nanoPower Boost Converter with a 512nA quiescent current. Operates in low-power mode at low loads to ensure high efficiency in all load conditions. For this version, V_OUT – V_IN > 0.2V (always in boost mode).
MAX18002WEVKIT# – Pre-installed with a MAX18002AWT+ultrasonic boost converter that operates in ultrasonic mode (FSW > 22kHz) at low loads to stay away from acoustic audible noise interference.

Analog Devices / Maxim Integrated MAX1800x Evaluation Kits

Features

Required Equipment

Components

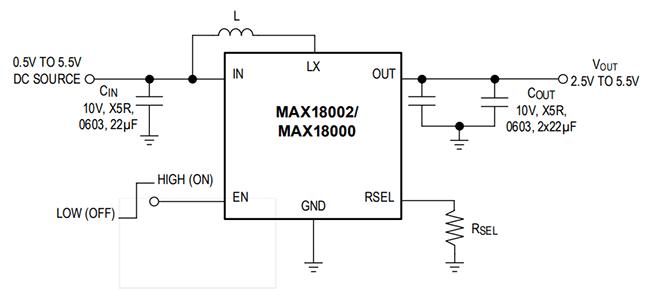

Typical Application Circuit

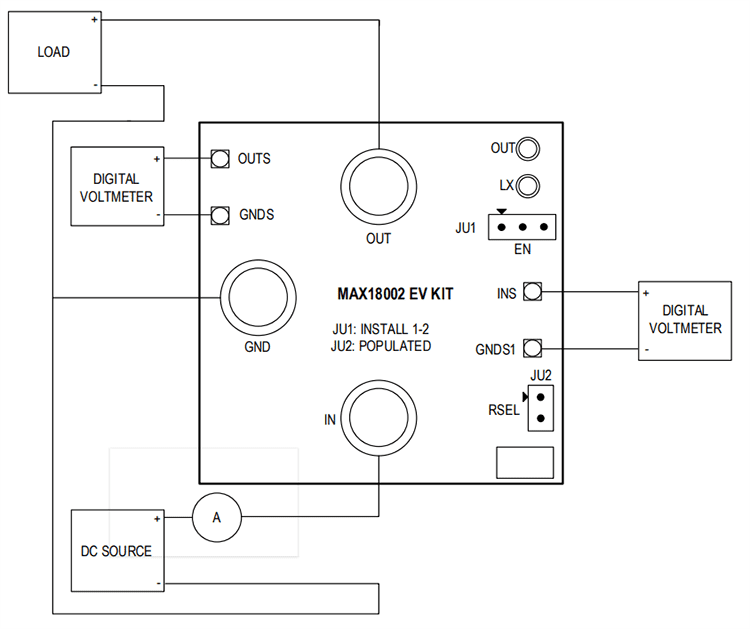

Connection Block Diagram
