Analog Devices / Maxim Integrated MAX17640A, MAX17640B, & MAX17640C Evaluation Kits

Analog Devices Inc. MAX17640A, MAX17640B, and MAX17640C Evaluation Kits provide proven designs to evaluate the performance of the MAX17640A, MAX17640B, and MAX17640C high-voltage, high-efficiency, synchronous step-down DC-DC converters. ADI MAX17640 Step-Down DC-DC Converters are high-efficiency, high-voltage, Himalaya synchronous DC-DC converters with integrated MOSFETs operating over a wide input-voltage range of 4.5V to 60V.

ADI MAX17640A, MAX17640B, and MAX17640C Evaluation Kits feature an adjustable input under-voltage lockout, open-drain RESET, overcurrent protection, selectable mode of operation, and thermal shutdown.

Features

Operates up to 60V input supply
Fixed 5V, fixed 3.3V, and adjustable 12V application circuits
Up to 400mA load current
500kHz Fixed switching frequency
Enable/UVLO input, resistor-programmable UVLO threshold
Selectable PWM and PFM modes of operation

Open-drain RESET output
Overcurrent and overtemperature protection
Proven PCB layout
Fully assembled and tested
Complies with CISPR32(EN55032) class B conducted and radiated emissions

Required Equipment

One 60V, 400mA DC power supply
Digital multimeters (DMM)
Load resistors capable of sinking up to 400mA (8.25Ω for MAX17640A, 12.5Ω for MAX17640B, and 30Ω for MAX17640C)

Analog Devices / Maxim Integrated MAX17640A, MAX17640B, & MAX17640C Evaluation Kits

Features

Required Equipment

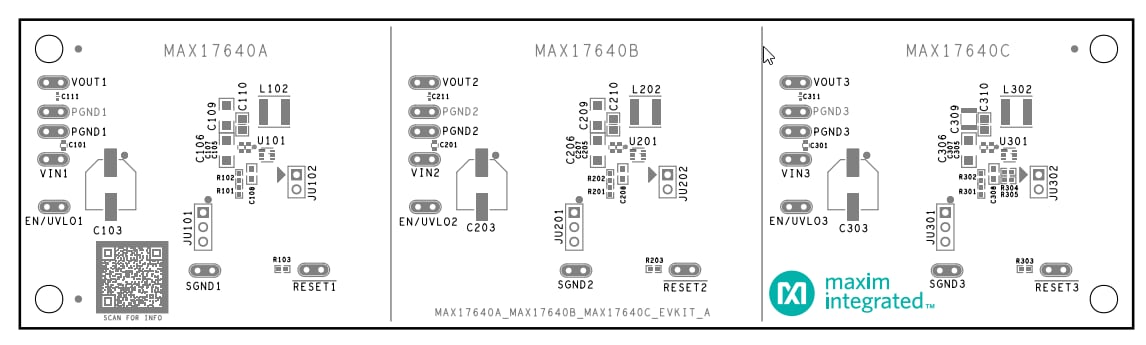

PCB Layout Diagrams
