Analog Devices / Maxim Integrated MAX17623/MAX17624 Evaluation Kits

Analog Devices Inc. MAX17623/MAX17624 Evaluation Kits is configured to evaluate the MAX17623/MAX17624 Step-Down Converters’ operation. The MAX17623/MAX17624 Step-Down Converters are part of the Himalaya series of products that enable cooler, smaller, and simpler power supply solutions. The devices are configured to demonstrate optimum performance and component sizes in the Evaluation Kits.

ADI MAX17623/MAX17624 Evaluation Kits feature provisions for selecting the mode of operation (PWM/PFM), enabling or disabling the output and PGOOD signal.

Features

2.9V to 5.5V Input-voltage range
MAX17623 Offers high 92.2% efficiency (V_IN = 3.3V, V_OUT = 1.5V, I_OUT = 300 mA)
MAX17624 Offers high 94.5% efficiency (V_IN = 5V, V_OUT = 3.3V, I_OUT = 500 mA)
Selectable PWM and PFM modes of operation

Internal 1ms soft-start time
PGOOD Output with pullup resistor to respective input voltages
Low-profile, surface-mount components
Proven PCB layout
Fully assembled and tested

Required Equipment

One 2.9V to 5.5V DC, 1A power supply
Load resistors capable of sinking up to 1A at 1.5V and 3.3V
Digital multimeter (DMM)

Analog Devices / Maxim Integrated MAX17623/MAX17624 Evaluation Kits

Features

Required Equipment

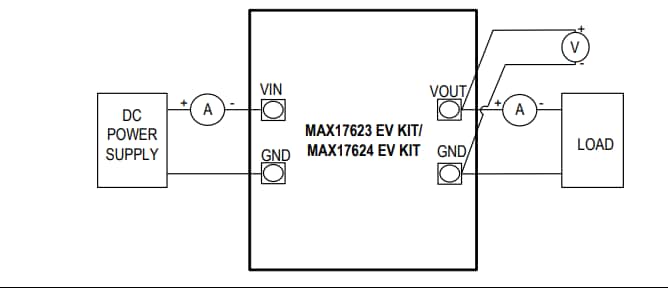

Configuration Diagram
