Analog Devices / Maxim Integrated MAX17615EVKIT Evaluation Kit

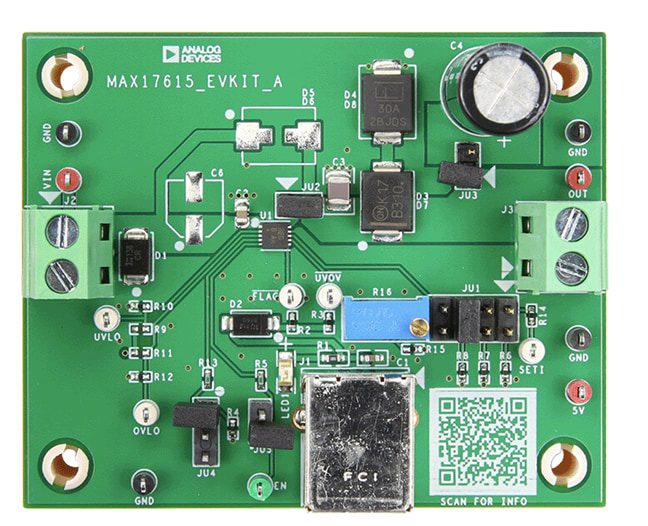

Analog Devices MAX17615EVKIT Evaluation Kit is a fully assembled and tested circuit board that evaluates the MAX17615. The MAX17615 is a 4.25V to 60V, 250mA current-limiter with overvoltage (OV), undervoltage (UV), and reverse protection in a 10-pin TDFN package. Analog Devices MAX17615EVKIT Kit can be configured to present adjustable overvoltage, undervoltage, different current-limit types, different current-limit thresholds, and input and output reverse voltage protection.

Features

4.25V to 60V operating-voltage range
Features a TVS diode across the input terminals
Features a Schottky diode and a TVS diode across the output terminals
Evaluates Undervoltage Lockout (UVLO), Overvoltage Lockout (OVLO), three current-limit types, and current-limit threshold
UVLO programmed to 4V

OVLO programmed to 39.6V
Jumper-configurable current-limit (selected as 250mA by default)
Current-limit mode set to auto retry by default
Proven PCB layout
Fully assembled and tested

Applications

Sensor systems
Condition monitoring
Battery operated modules

Process instrumentation
PLC
Network modules

Required Equipment

MAX17615 EV kit
60V_DC power supply
Multimeters

Adjustable load (0A to 1A)
USB-A male to USB-B male cable or 5V_DC power supply
