Analog Devices / Maxim Integrated MAX17330X2EVKIT Evaluation Kit

Analog Devices MAX17330X2EVKIT Evaluation Kit is a fully assembled and tested surface-mount PCB that evaluates the MAX17330. The MAX17330 is a stand-alone charger, fuel gauge IC with protector, and optional SHA256 authentication for 1 cell lithium-ion/polymer batteries. The Analog Devices MAX17330X2EVKIT includes the IC evaluation board with an integrated I2C interface and USB micro-B cable. Windows® based graphical user interface (GUI) software is available for use with the evaluation kit.

Features

ModelGauge m5 algorithm
Charges, monitors, and protects a 1S battery
Full protection solution onboard for evaluation
Battery voltage (V_BATT) range of +2.16V to +4.9V with default hardware
Default current range -5A (discharge) to +2.56A (charge) with 10mΩ sense resistor (higher currents can be supported by changing to a smaller sense resistor)

Input voltage up to 5.7V
Two thermistor measurements
Onboard I²C communication interface with built-in MAXUSB interface
Windows 7 or newer compatible software
Proven PCB layout
Fully assembled and tested

Kit Contents

MAX17330 evaluation kit
USB micro B cable

Required Equipment

MAX17330 evaluation kit
Lithium-ion/polymer cell
Voltage source/power supply
Load circuit

USB micro B cable
PC with Windows 7 or newer Windows operating system and USB port

Analog Devices / Maxim Integrated MAX17330X2EVKIT Evaluation Kit

Features

Kit Contents

Required Equipment

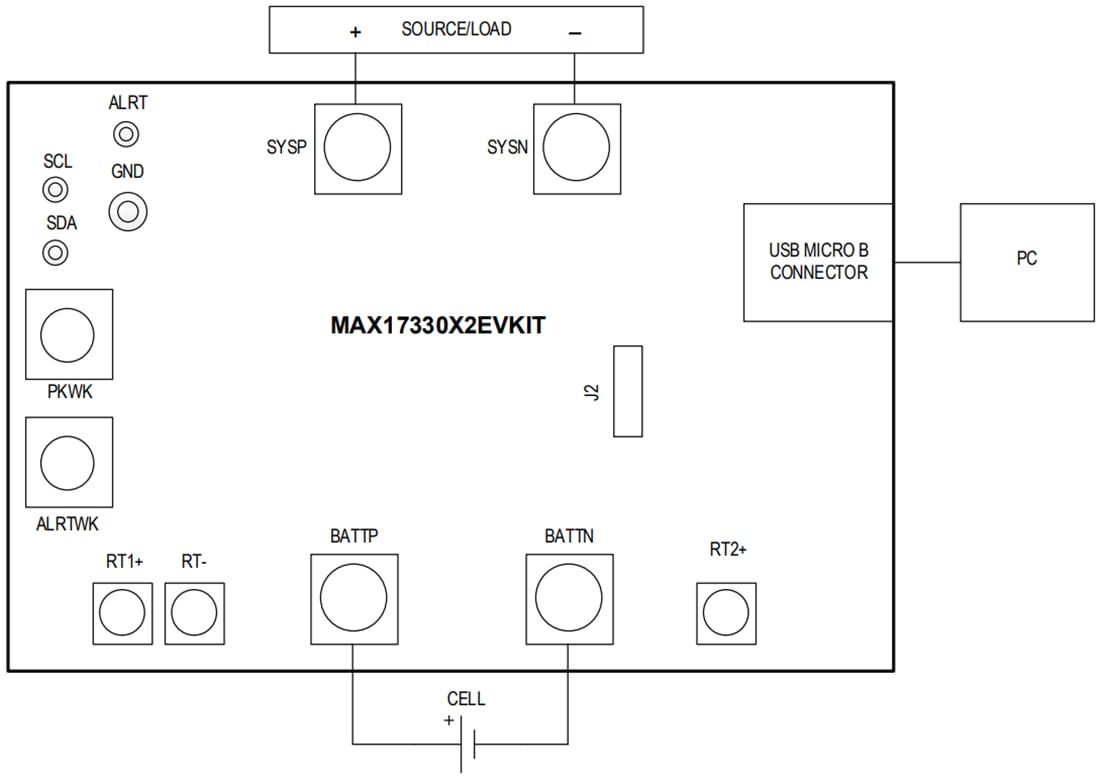

Board Connections
