Analog Devices / Maxim Integrated MAX17310 Evaluation Kits

Analog Devices MAX17310 Evaluation Kits are fully assembled and tested surface-mount PCBs that evaluate the stand-alone pack-side fuel gauge IC. These Analog Devices kits include the IC evaluation board with an integrated I²C/1-Wire® interface and USB micro-B cable. Windows®-based graphical user interface (GUI) software is available for use with the EV kits.

Features

ModelGauge™ m5 algorithm
Monitors single-cell packs
Full protection solution on-board for evaluation
Battery pack input voltage range of +2.3V to +4.9V with default hardware
Default current range -5A to +5A, up to 10A with less than 5mΩ sense resistor

Thermistor measurement network
On-board I²C/1-wire communication interface
Windows 7 or newer compatible software
Proven PCB layout
Fully assembled and tested

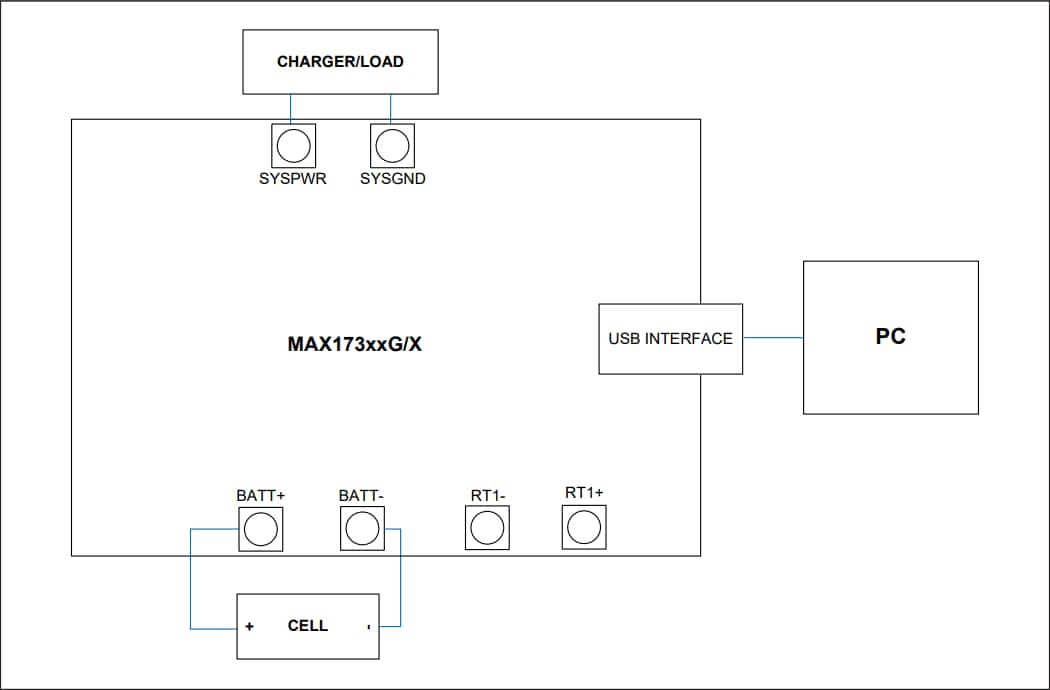

Board Connections
