Analog Devices / Maxim Integrated MAX17227A TDFN Evaluation Kit

Analog Devices Inc. MAX17227A TDFN Evaluation Kit is designed to facilitate the evaluation of MAX17227A devices in the TDFN package. ADI MAX17227A is a nano power boost converter with a 2A peak inductor current limit and has True Shutdown mode.

ADI MAX17227A TDFN Evaluation Kit operates over an input range of 400mV to 5.5V with 0.88V typical startup at 3kΩ load. The Evaluation Kit includes the MAX17227AATA+ installed and provides resistor configurable output voltages from 2.3V to 5.5V.

Features

Evaluates the MAX17227A in an 8-pin TDFN
400mV to 5.5V Input range
2.3V to 5.5V Configurable output voltage
Up to 1A output current

Proven 2-layer 1oz copper PCB layout
Demonstrates compact solution size
Fully assembled and tested

Required Equipment

MAX17227A TDFN EV kit
3A DC power supply

Electronic load capable of 1A
Digital voltmeter (DVM)

Analog Devices / Maxim Integrated MAX17227A TDFN Evaluation Kit

Features

Required Equipment

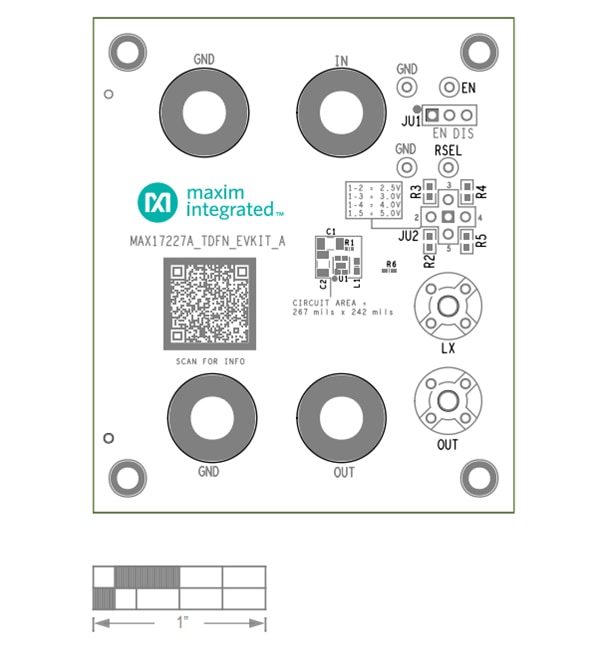

PCB Layout

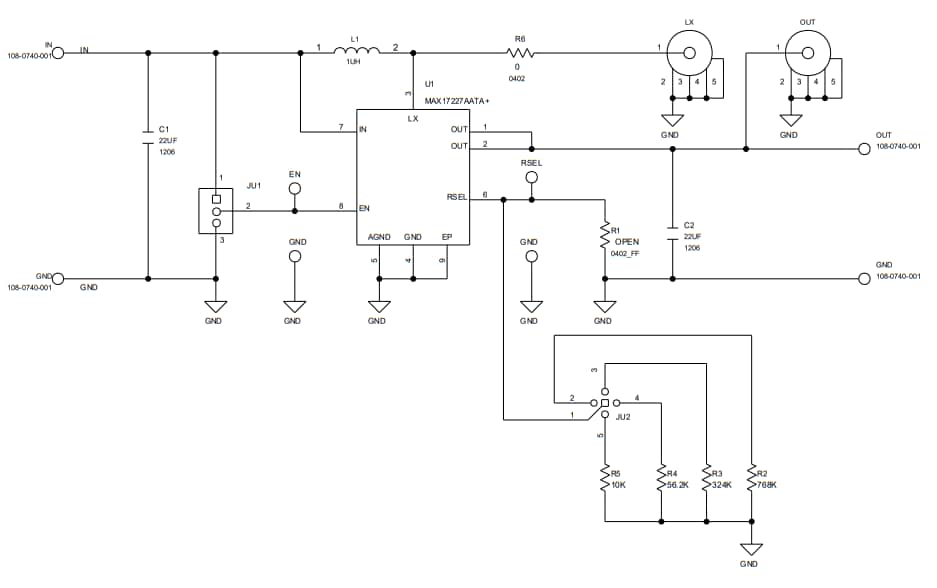

Schematic
