Analog Devices / Maxim Integrated MAX16984AEVKIT Evaluation Kit

Analog Devices Inc. MAX16984AEVKIT Evaluation Kit is configured to evaluate the operation of the MAX16984A automotive high-current, high-efficiency, step-down DC-DC converter with integrated USB Type-A controller. The MAX16984A includes 1GHz bandwidth USB 2.0 D+/D- protection switches which provide ESD and short-to-battery protection for low-voltage transceivers.

Features

Configurable charge detection modes
- USB-IF BC1.2 CDP, DCP
- Apple 2.4A
- Samsung 2.0A
- China YD/T 1591-2009 charging specification

Automatic USB voltage adjustment by integrated DC-DC converter (310kHz – 2.2MHz)
Proven PCB layout
Fully assembled and tested

Required Equipment

MAX16984A EV kit
2m USB-A extension cable (included in EV kit)
1.6Ω 20W resistor (included in EV kit) or electronic load
USB Type-A plug (included in EV kit)

14V/2A DC power supply or car battery (VBAT)
Digital voltmeter (DVM)
USB Type-A flash drive

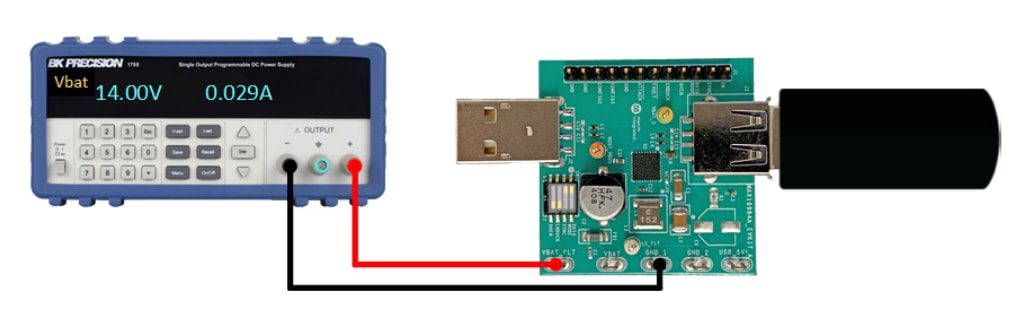

Setup
