Analog Devices / Maxim Integrated MAX16191EVKIT Evaluation Kit

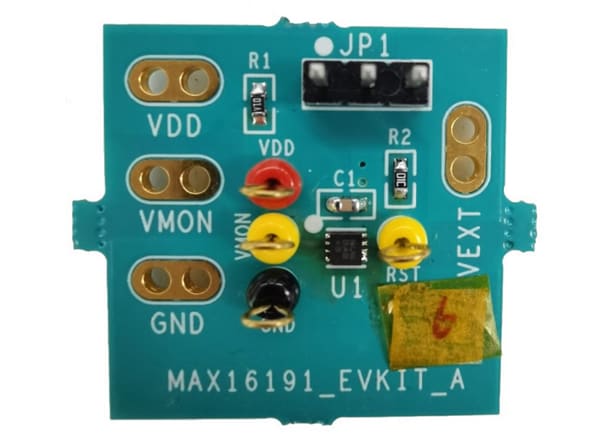

Analog Devices MAX16191EVKIT Evaluation Kit demonstrates the capabilities of the MAX16191 single-channel, low-voltage window-detector supervisor circuit. The fully tested and assembled circuit facilitates the evaluation of the MAX16191’s 0.35% overvoltage/undervoltage (OV/UV) faults detection capability. A jumper, JP1, provides the option to connect the reset output’s pull-up resistor to a voltage other than VCC. Analog Devices MAX16191EVKIT Evaluation Kit is available in a 1″ x 1″ PCB and operates over the automotive temperature range of -40°C to +125°C.

Features

±0.35% threshold accuracy
0.875V nominal threshold range
±3% UV/OV monitoring range
10ms reset timeout for RST signal

Two reset output pull-up voltage options
Proven 1″ x 1″ 2-layer 2oz copper PCB layout
Demonstrates compact solution size
Fully assembled and tested

Required Equipment

MAX16191 EV kit
5V/100mA DC power supply
1V/50mA high-precision DC power supply

One digital multimeter (DMM)
Function generator
Two-channel oscilloscope

Analog Devices / Maxim Integrated MAX16191EVKIT Evaluation Kit

Features

Required Equipment

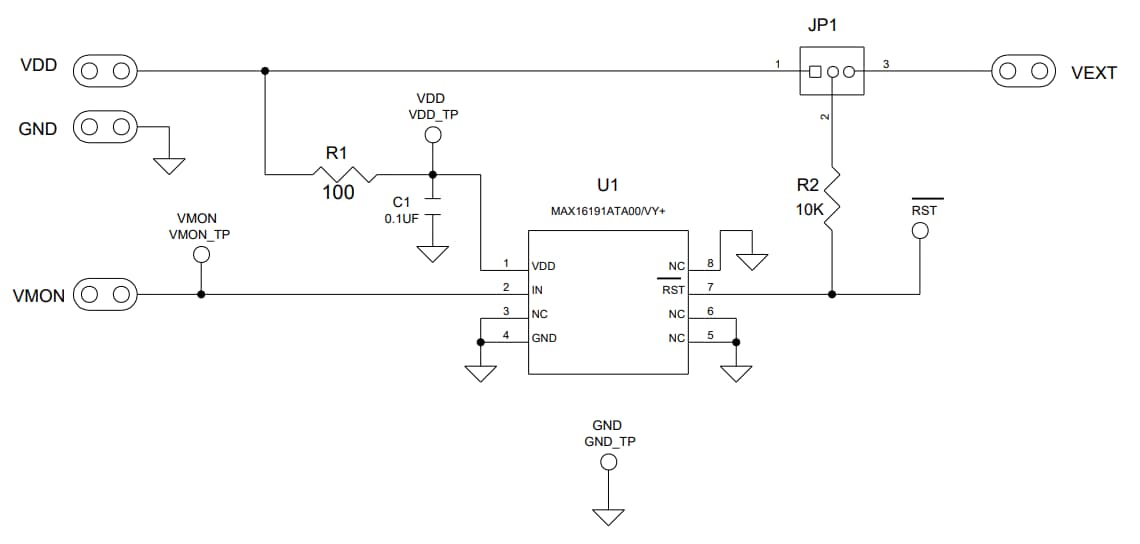

Schematic
