Analog Devices / Maxim Integrated MAX16173 Ideal Diode Controllers

Analog Devices MAX16173 Ideal Diode Controllers ensure system protection against unexpected power disruptions. The MAX16173 has a wide operating voltage range of 3V to 50V and a low shutdown current of just 3μA. Analog Devices MAX16173 controllers are ideal for powering critical systems in the demanding environment of the automotive industry. The integrated boost converter is a standout feature, allowing the external N-Channel power MOSFET to be driven 11V above the source during high-load operation for maximum efficiency and reliability.

Features

-42V to +65V protection voltage range
3V to 50V operating voltage range
MOSFET diagnostic test
3μA (Typ.) shutdown current
Active rectifier

Open-drain FETOK output
Open-drain power good output
-40°C to +125°C temperature range
3mm x 3mm side wettable TDFN

Applications

Automotive power systems
Network telecom power systems

RAID systems
Servers

Analog Devices / Maxim Integrated MAX16173 Ideal Diode Controllers

Features

Applications

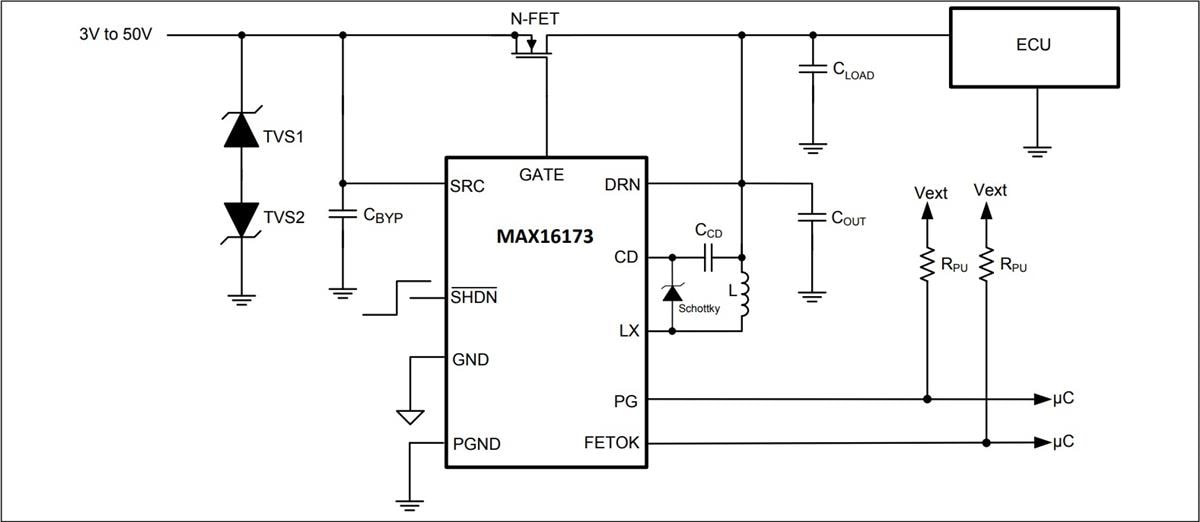

Typical Application Circuit
