Analog Devices / Maxim Integrated MAX14919 Evaluation Kit

Analog Devices MAX14919 Evaluation Kit is designed to evaluate MAX14919 industrial-grade quad low-side switch with 140mΩ on-resistance and ±1kV/42Ω surge protection. This kit features reverse-current detection to prevent damage caused by miswiring faults at output and return terminals. The Analog Devices MAX14919 Evaluation Kit comes with the MAX14919AUP+ (20 TSSOPEP, 6.5mm x 6.4mm footprint) device installed. This evaluation kit operates from 1.8V to 5.5V wide logic-voltage range.

Features

Robust operation with a wide range of input voltages and load conditions
Surge protection with up to ±1kV IEC61000-4-5 at output to ground
LED indication of fault and reverse-current detect conditions
Multiple fault-condition indications
- Reverse-current detection
- Undervoltage lockout on V₅ output
- Short detection on RCLIM control input
- Thermal shutdown fault
Includes a FET for output reverse-current protection

Inrush current control to allow up to 2x the maximum load current
Resistor-Selectable options to set maximum allowable load current
1.8V to 5.5V wide logic-voltage range
3V to 5.5V isolated supply input range
Proven PCB layout
Fully assembled and tested

Analog Devices / Maxim Integrated MAX14919 Evaluation Kit

Features

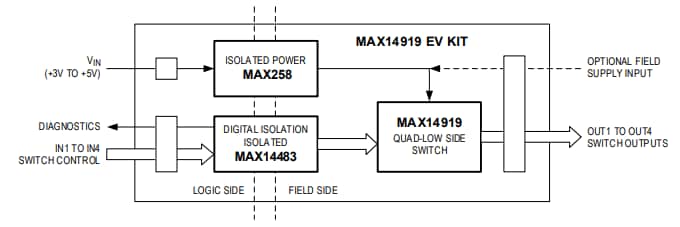

Block Diagam
