Analog Devices / Maxim Integrated DS28E40EVKIT Evaluation Kit

Analog Devices DS28E40EVKIT Evaluation Kit is a demonstration and development platform for the DS28E40 DeepCover® Automotive 1-Wire Authenticator. The DS28E40 is designed to ensure vehicle safety and reliability by authenticating automotive components. The DS28E40 provides a core set of cryptographic tools derived from integrated asymmetric (ECC-P256) and symmetric (SHA-256) security functions.

The Analog Devices DS28E40EVKIT Evaluation Kit consists of an Evaluation Board with a TDFN socket, I²C header, and test points, a USB-to-I²C/1-Wire Adapter Board, and five DS28E40 devices in a TDFN10 package. The Evaluation Board connects to a PC’s USB port via the USB-to-I²C/1-Wire Adapter Board. A windows-based Graphic User Interface (GUI) enables the user to demonstrate the capabilities of the target device and to program its functions.

Features

Demonstrates the features of the DS28E40 DeepCover® Secure Authenticator
TDFN socket enables burn-in of the target device
Convenient test points
1-Wire communication is logged to aid firmware designers’ understanding of the DS28E40

1-Wire/I²C USB Adapter creates a virtual COM port on any PC
Fully compliant with USB v2.0 specifications
Easy-to-use Windows-based GUI
3.3V ±3% 1-Wire operating voltage

Kit Contents

5x DS28E40 in a TDFN10 package
TDFN Socket Board (DS9121CQ)

USB-to-I²C/1-Wire Adapter (DS9481P-300)
USB Type-A to Micro-USB Type-B Cable

Analog Devices / Maxim Integrated DS28E40EVKIT Evaluation Kit

Features

Kit Contents

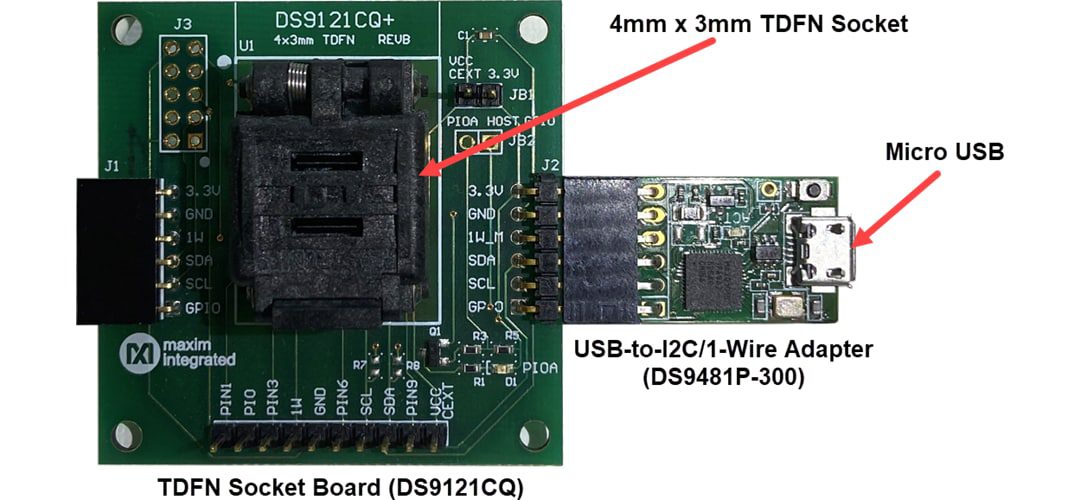

Board Layout
