Analog Devices / Maxim Integrated DS2478 Evaluation Kit

Analog Devices DS2478 Evaluation Kit provides the necessary software and hardware solutions to exercise the features of the DS2478 coprocessor in conjunction with DS28E40 / DS28C40 ICs. This Analog Devices kit consists of five DS2478 / DS28E40 / DS28C40 devices in a 10-pin TDFN package and two DS9121ATB+ TDFN socket boards along with a DS9481P-300# USB-to-I²C/1-Wire^® adapter. The evaluation software runs under Windows^® 10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. Typical applications include automotive secure authentication, IoT node crypto-protection, identification and calibration of automotive parts/tools, and secure storage of cryptographic keys for a host controller.

Features

Demonstrates the features of the DS2478
DeepCover^® ECDSA secure 1-wire and I²C authenticators
Communication is logged to aid the firmware designer’s understanding of DS2478 and the DS28E40/DS28C40 authenticators
1-Wire/I²C USB adapter creates a virtual COM port on any PC

Fully compliant with USB specification v2.0
Software runs on Windows 10, Windows 8, and Windows 7 for both 64-Bit and 32-Bit versions
3.3V ±3% 1-wire operating voltage

Applications

Automotive secure authentication
Identification and calibration automotive of parts/ tools/accessories
IoT node crypto-protection

Secure authentication of accessories and peripherals
Secure storage of cryptographic keys for a host controller
Secure boot or download of firmware and/or system parameters

Analog Devices / Maxim Integrated DS2478 Evaluation Kit

Features

Applications

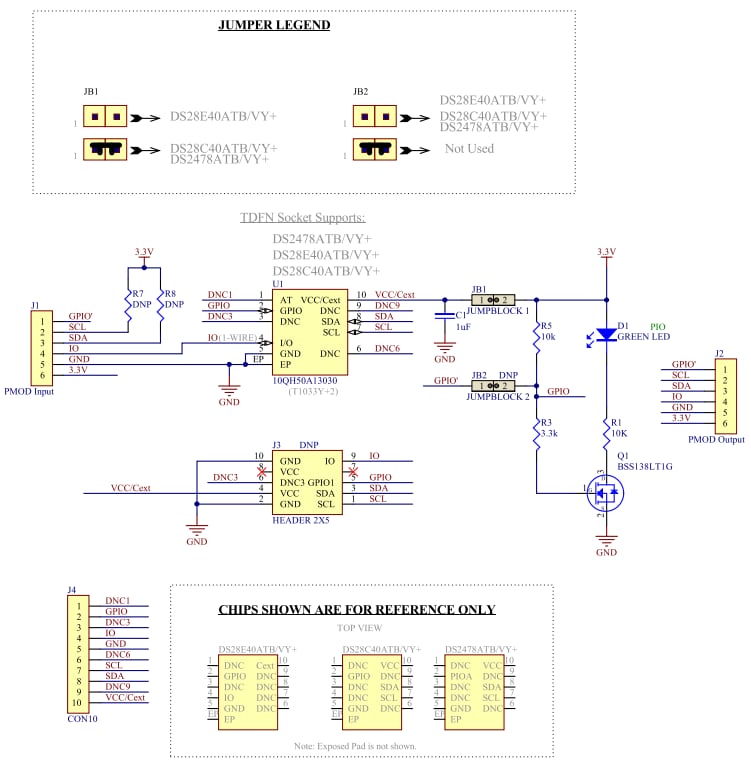

DS2478EVKIT Schematic Diagram
