Analog Devices Inc. LTP8800-1A 150A Step-Down μModule Regulator

Analog Devices Inc. LTP8800-1A 150A Step-Down μModule Regulator provides microprocessor core voltage from a 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I²C-based digital interface protocol. The LTP8800-1A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density. The LTP8800-1A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses. The Analog Devices Inc. LTP8800-1A is available in a 22mm × 24mm × 6.7mm surface-mounted open frame package.

Features

High efficiency at high frequency
- Up to 87.0% efficiency at 1MHz, 54VIN to 0.8VOUT
PMBus-compliant I2C serial interface
- Monitor voltage, current, temperature, and faults
- Internal EEPROM fault log record
- Digitally programmable control loop
- Program voltage, current limits, soft-start/soft-stop, frequency, synchronization and phasing, Power-Good, warnings, and faults

45V to 65V wide input voltage range
0.5V to 1.1V output voltage range
Optimized for 45V to 65VIN to 0.8VOUT
±0.5% maximum DC output error with a differential remote voltage sense
±3% current readback accuracy
Parallel and current share multiple μModule® ICs
22mm × 24mm × 6.7mm surface mount package

Applications

High-current distributed power systems
Servers, network, and storage equipment
Intelligent energy-efficient power regulation

Analog Devices Inc. LTP8800-1A 150A Step-Down μModule Regulator

Features

Applications

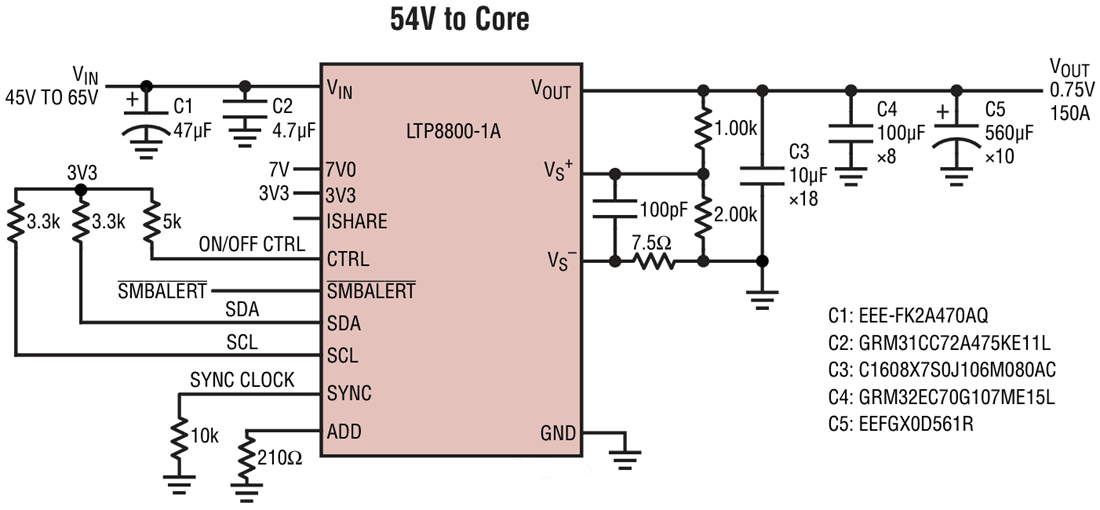

Typical Application
