Analog Devices Inc. LTM®4710-1 μModule Regulator

Analog Devices Inc. LTM®4710-1 μModule Regulator offers 8A per output, with switching controllers, power MOSFETs, inductors, and support components. Analog Devices Inc. LTM4710-1 operates from an input voltage of 2.5V to 5.5V. Channel 1’s output voltage can be set with a single external resistor, while channels 2, 3, and 4 require two external resistors. All output voltages are programmable up to 3.6V.

Features

Quad output step-down µModule regulator with configurable 8A output array
Ultralow noise silent switcher®2 architecture
CISPR32 Class B compliant
2.5V to 5.5V input voltage range
0.5V to 3.6V output voltage range
8A DC output current, each channel

Parallelable for higher output current
±1.5% maximum total DC output voltage accuracy
1MHz to 5MHz selectable switching frequency
Power good indicator
Die temperature monitoring
6mm × 12mm × 3.54mm Land Grid Array (LGA) with pre-solder package

Applications

Optical communications
Multi-rail point-of-load regulation
Telecom, datacom, networking system

Field Programmable Gate Arrays (FPGAs), Digital Signal Processing (DSPs) and Application Specific Integrated Circuits (ASICs)

Analog Devices Inc. LTM®4710-1 μModule Regulator

Features

Applications

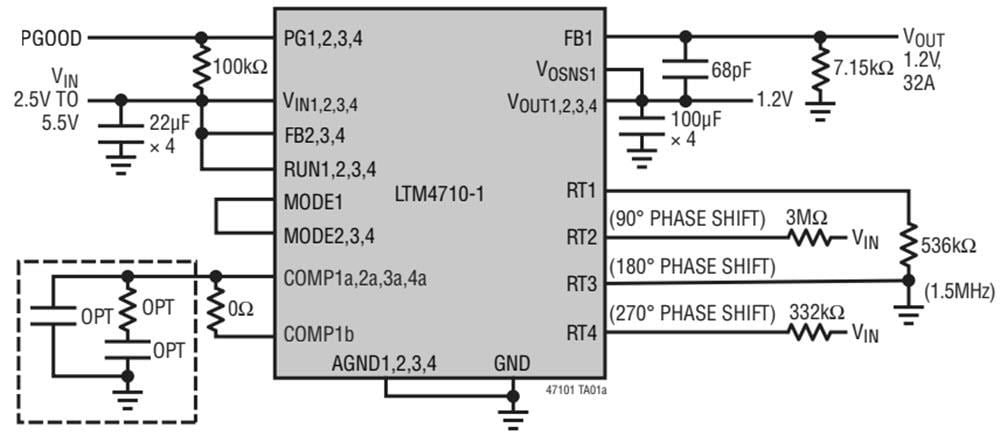

TYPICAL APPLICATION
