Analog Devices Inc. LTM4693 2A Buck Boost µModule® DC-DC Converter

Analog Devices LTM4693 2A Buck-Boost µModule® DC-DC Converter operates from input voltages above, below, or equal to the output voltage. The switching controller, power MOSFETs, inductor, and support components are included in the package. The advanced topology of the LTM4693 provides a continuous transfer through all operating modes. V_IN operation from 2.6V to 5.5V covers a wide variety of power sources, including typical 3.3V and 5V. Output voltage ranging from 1.8V to 5.5V is set by an external resistor. Only a few external components are needed for a typical application.

The Analog Devices LTM4693 DC-DC Converter is offered in an ultrathin 3.5mm × 4.0mm × 1.25mm LGA package and is Pb-free and RoHS compliant.

Features

Wide 2.6V to 5.5V input voltage range
Adjustable 1.8V to 5.5V output voltage range
2A of continuous output current with V_IN ≥ V_OUT (buck mode and buck-boost mode); minimum 1A continuous output current with V_IN < V_OUT (boost mode)

Low ripple buck-boost architecture
Programmable soft-start and V_IN UVLO
Burst mode I_Q 15μA for high efficiency at light loads
Ultra-thin, small surface-mount footprint
3.5mm x 4mm x 1.25mm LGA package

Applications

Telecom, datacom (optical modules), and industrial equipment
Medical and industrial instruments

Wireless RF transmitters
Battery-powered systems

Analog Devices Inc. LTM4693 2A Buck Boost µModule® DC-DC Converter

Features

Applications

Videos

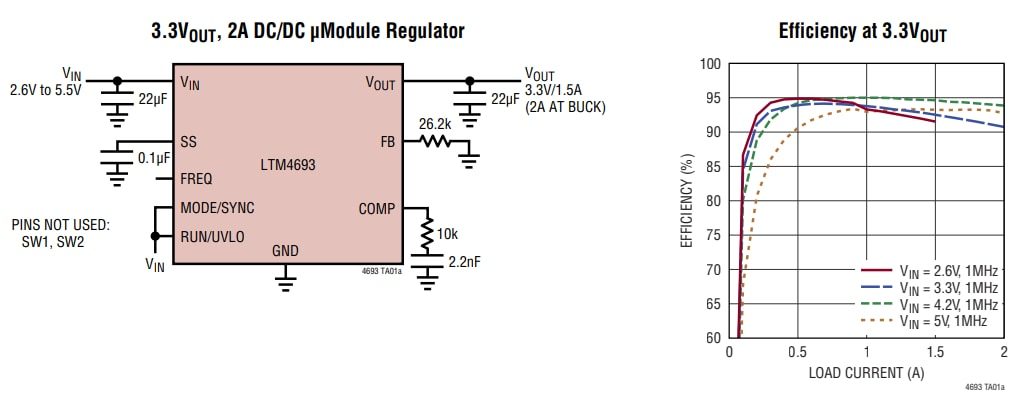

Typical Application
