Analog Devices Inc. LTM4658 Step-Down DC/DC μModule Regulators

Analog Devices Inc. LTM4658 Step-Down DC/DC μModule Regulators are complete 10A step-down switching mode μModule® regulators. The LTM4658 is housed in a 4mm × 4mm × 4.32mm LGA package. Included in the package are the switching controller, power MOSFETs, inductor, and all support components. The LTM4658 operates over an input voltage range of 2.25V to 5.5V and supports an output voltage range of 0.5V to VIN set by external resistors. Its high-efficiency design delivers a 10A continuous output current. Only ceramic input and output capacitors are needed.

Features

Tiny surface mount, 4mm × 4mm × 4.32mm LGA package
Silent Switcher®2 architecture
Ultralow EMI noise
Input voltage range 2.25V to 5.5V
Output voltage range 0.5V to VIN
10A DC output current
Current mode control, fast transient response

Multiphase parallel current sharing with multiple LTM4658s
Output soft-start with voltage tracking
External frequency synchronization
Selectable pulse-skipping mode
Power good indicator
Die temperature monitoring output
Overvoltage, overcurrent, and overtemperature protection

Applications

Telecom, datacom, networking system
Optical module

Industrial equipment
Point-of-load regulation

Analog Devices Inc. LTM4658 Step-Down DC/DC μModule Regulators

Features

Applications

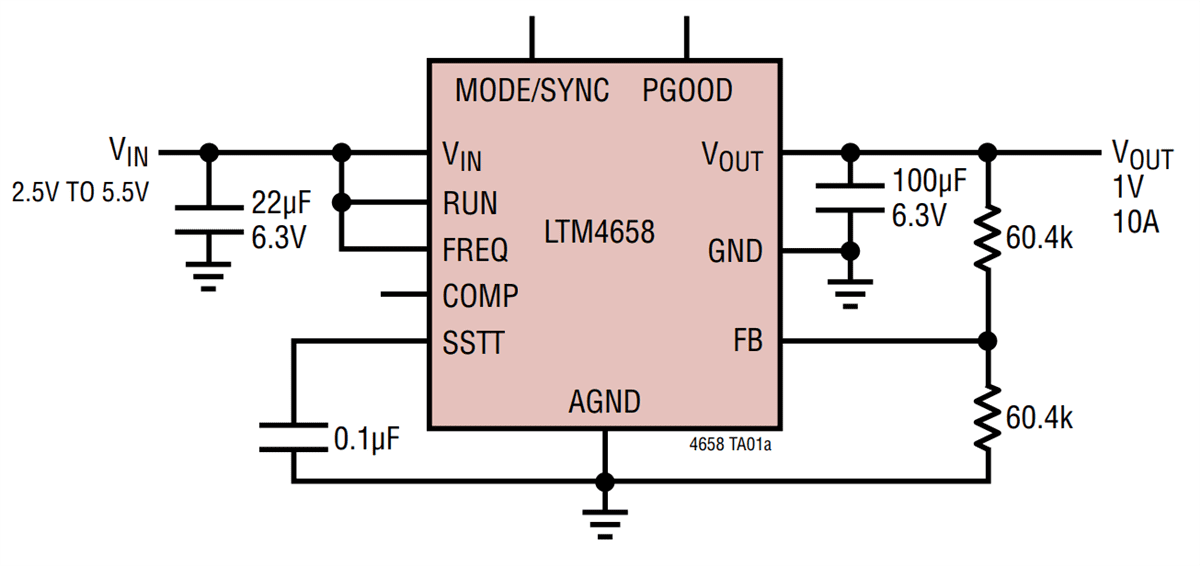

TYPICAL APPLICATION
