Analog Devices Inc. LTC7067 Dual High-Side MOSFET Gate Driver

Analog Devices Inc. LTC7067 Dual High-Side MOSFET Gate Driver integrates two ground-referenced, low voltage digital signal inputs to drive two N-channel high-side power MOSFETs with supply voltages up to 140V. Both drivers provide excellent noise and transient immunity. The two drivers are symmetric and independent of each other, allowing complementary or non-complementary switching.

The internal MOSFET drivers of the LTC7067 feature a powerful 0.8Ω pull-down and 1.5Ω pull-up. This feature allows the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, TTL/ CMOS compatible inputs, and a fault indicator.

The Analog Devices Inc. LTC7067 Dual High-Side MOSFET Gate Driver is available in a thermally enhanced 12-lead MSOP package and is AEC-Q100 qualified for automotive applications.

Features

AEC-Q100 qualified for automotive applications
Unique symmetric floating gate driver architecture
High noise immunity with ±10V ground difference tolerance
140V maximum input voltage independent of IC supply voltage V_CC
5V to 14V V_CC operating voltage
4V to 14V gate driver voltage
0.8Ω pull-down, 1.5Ω pull-up for fast turn-on/off

TTL/CMOS compatible input
V_CC UVLO/OVLO and floating supplies UVLO
Drives dual N-channel MOSFETs
Open-drain fault indicator (V_CC UVLO/OVLO, Gate driver UVLO and thermal shutdown)
-40°C to 150°C operating junction temperature range
Thermally enhanced MSOP-12 package with an exposed pad

Applications

Automotive and industrial power systems
Telecommunication power systems

Analog Devices Inc. LTC7067 Dual High-Side MOSFET Gate Driver

Features

Applications

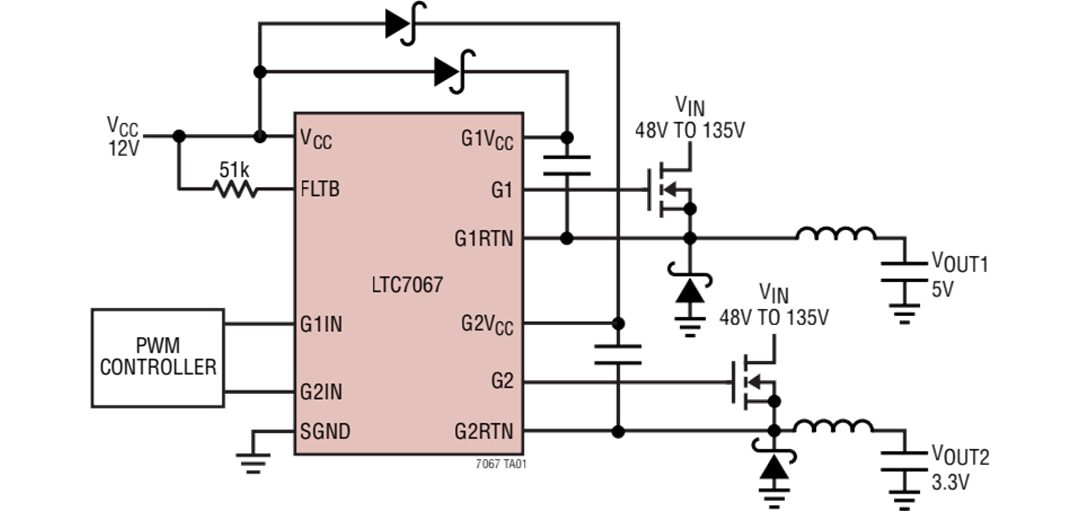

Typical Application Circuit

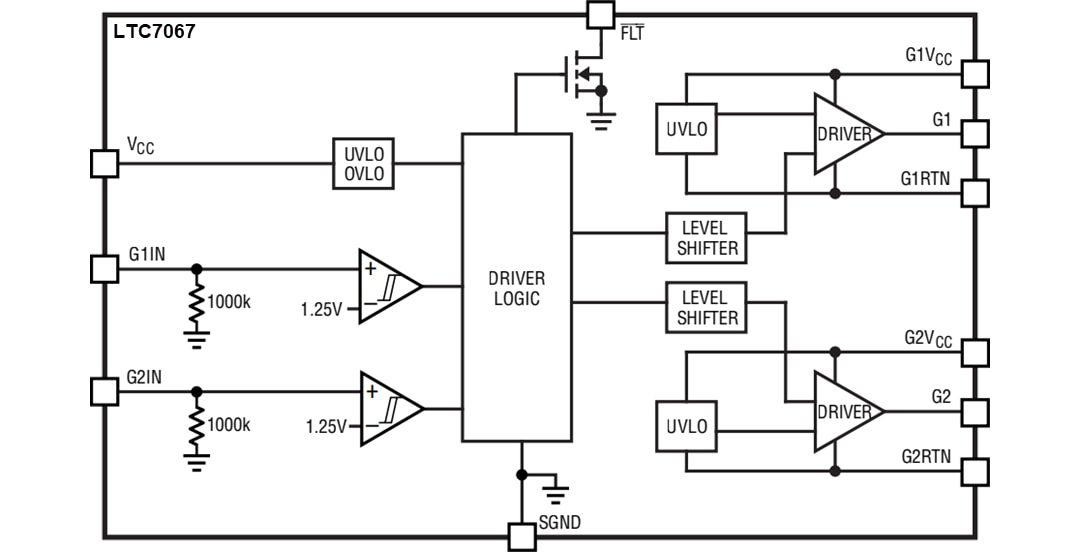

Block Diagram

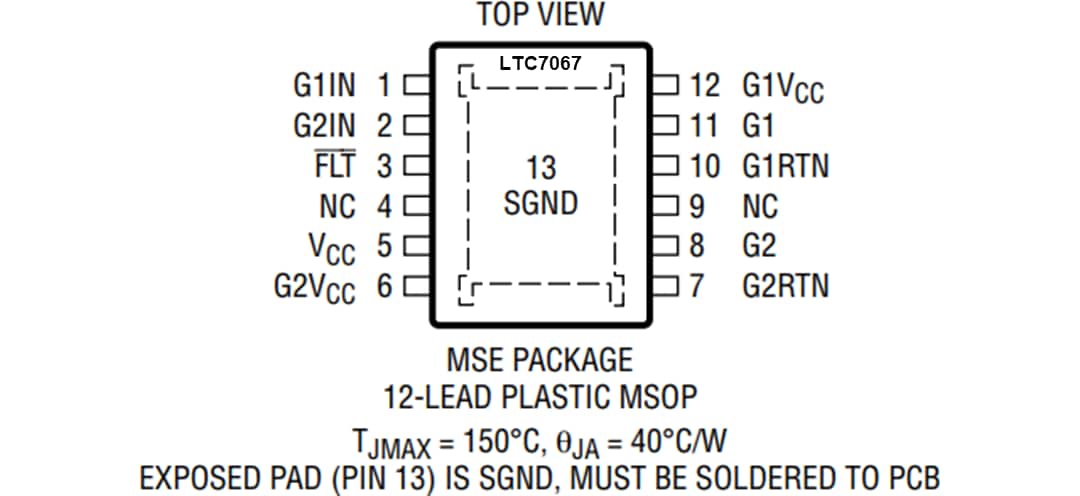

Pin Designations
