Analog Devices Inc. LTC2980-24 PMBus Power System Manager

Analog Devices Inc. LTC2980-24 PMBus Power System Manager is used to sequence, trim (servo), margin, supervise, manage faults, provide telemetry and create fault logs. The PMBus commands support power supply sequencing, precision point-of-load voltage adjustment, and margining. DACs use a proprietary soft-connect algorithm to minimize supply disturbances.

Features

Sequence, trim, margin, and supervise 16 power supplies
Manage faults, monitor telemetry, and create fault logs
PMBus™ compliant command set
Supported by LTpowerPlay® GUI
Margin or trim supplies to within 0.25% of the target
Fast OV/UV supervisors per channel
Coordinate sequencing and fault management across multiple LTC PSM devices
Automatic fault logging to internal EEPROM

Operate autonomously without additional software
Internal temperature and input voltage supervisors
Accurate monitoring of 16 output voltages, two input voltages, and internal die temperature
I²C/SMBus serial interface
Can be powered from 3.3V, or 4.5V to 15V
Programmable watchdog timer
Available in 144-pin 12mm × 12mm BGA Package

Applications

Computers and network servers
Industrial test and measurement
High-reliability systems

Medical imaging
Video

Analog Devices Inc. LTC2980-24 PMBus Power System Manager

Features

Applications

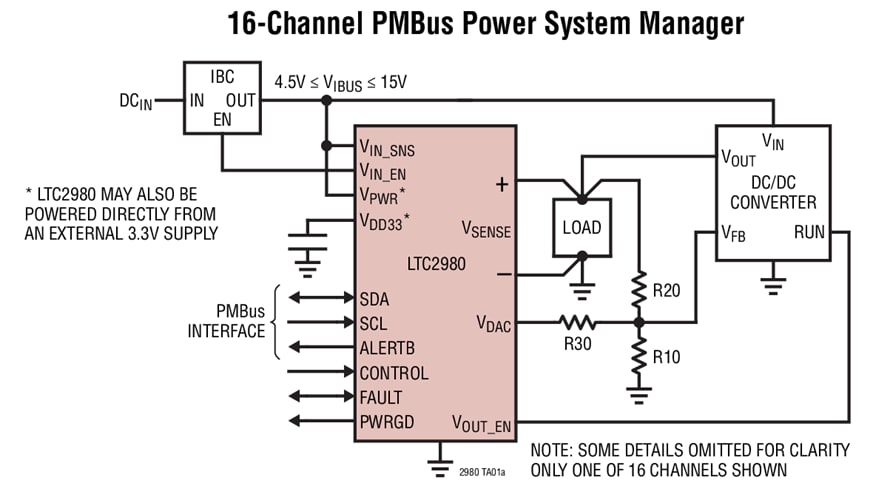

Block Diagram
