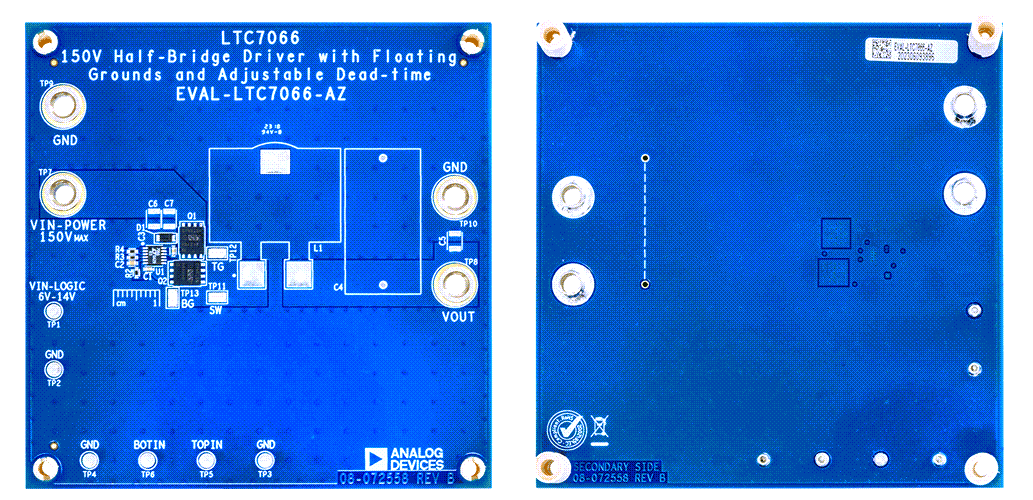

Analog Devices Inc. EVAL-LTC7066-AZ Evaluation Board

Analog Devices EVAL-LTC7066-AZ Evaluation Board implements two N-channel MOSFETs. The LTC7066 driver has a powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET driver that drives two 150V N-channel MOSFETs. The ADI EVAL-LTC7066-AZ Evaluation Board offers several unpopulated PCB pads to help users customize the board for their application. Furthermore, the gate drivers on the LTC7066 can drive MOSFETs with different ground references; however, the ground references are dedicated.
