Analog Devices Inc. EVAL-CN0575-RPIZ Development Board

Analog Devices Inc. EVAL-CN0575-RPIZ Development Board is a 4-layer printed circuit board (PCB) for evaluating the CN0575. The CN0575 is a 10BASE-T1L Field Device Development Platform with Class 12/13 Single Pair Power over Ethernet (SPoE). The Analog Devices Inc. EVAL-CN0575-RPIZ is designed for the Raspberry Pi platform and offers seamless integration with its 40-pin GPIO header. The device maintains the mechanical dimensions of a standard HAT. To facilitate board stacking and the development of field device applications using Raspberry Pi HATs, the evaluation board comes equipped with an additional GPIO header featuring extended leads.

Features

  • Data and power delivery using single-pair Power over Ethernet
  • Power Class 12 and 13 delivery capable
  • Supports longer distances of up to 1km
  • Provides speeds up to 10MBPS
  • Works with existing software stacks like PROFINET, EtherCat, MOD-BUS, and others

Applications

  • Temperature sensing field device
  • Field device development
  • Power over Ethernet (PoE) applications
  • Raspberry Pi HAT development
  • Remote user input/output
  • Educational projects
  • IoT applications
  • Industrial automation
  • Home automation
  • Prototyping and experimentation

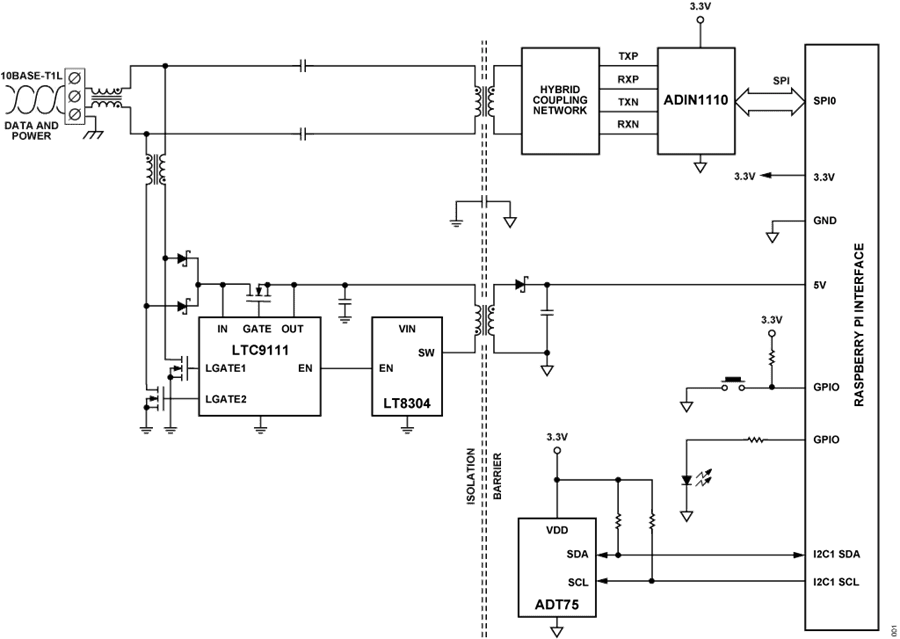

Block Diagram

Block Diagram - Analog Devices Inc. EVAL-CN0575-RPIZ Development Board
