Analog Devices Inc. EVAL-CN0554-RPIZ Module

Analog Devices Inc. EVAL-CN0554-RPIZ Module is a flexible, general-purpose multichannel mixed-signal analog input/output (I/O) module. This module is designed to mount directly on top of a Raspberry Pi, providing this popular single-board computer with an analog input/output interface. The EVAL-CN0554-RPIZ module has three main connectors the 40-pin connector, the 30-pin DAC connector, and the 30-pin ADC connector.

Features

8-psuedo differential inputs or 16-single-ended inputs
Selectable input voltage range, up to ±13V
16 single-ended outputs

Up to ±15V outputs
All power rails Derived from the Raspberry Pi

Analog Devices Inc. EVAL-CN0554-RPIZ Module

Features

Videos

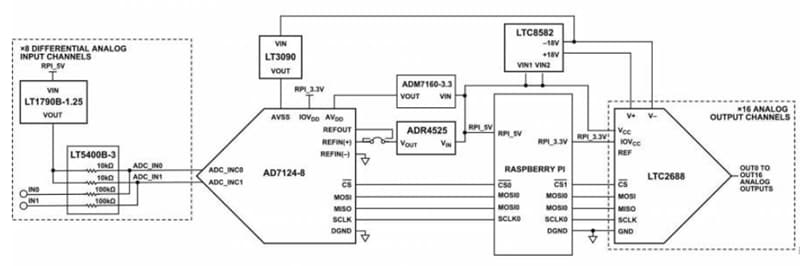

System Block Diagram
