Analog Devices Inc. EVAL-ADRF5717 Evaluation Board

Analog Devices Inc. EVAL-ADRF5717 Evaluation Board evaluates the features and performance of the ADRF5717 2-bit digital attenuator with a 48dB attenuation control range manufactured in the silicon-on-insulator (SOI) process. This connectorized, full-featured evaluation board provides an easy connection to test equipment and offers an additional throughline for calibration.

Features

Full-featured evaluation board for the ADRF5717
Easy connection to test equipment
Additional throughline for calibration

Applications

Industrial scanners
Test and instrumentation
Cellular infrastructure (5G millimeter wave)

Military radios, radars, and electronic countermeasures (ECMs)
Microwave radios and very small aperture terminals (VSATs)

Required Equipment

DC power supply
Network analyzer

Schematic

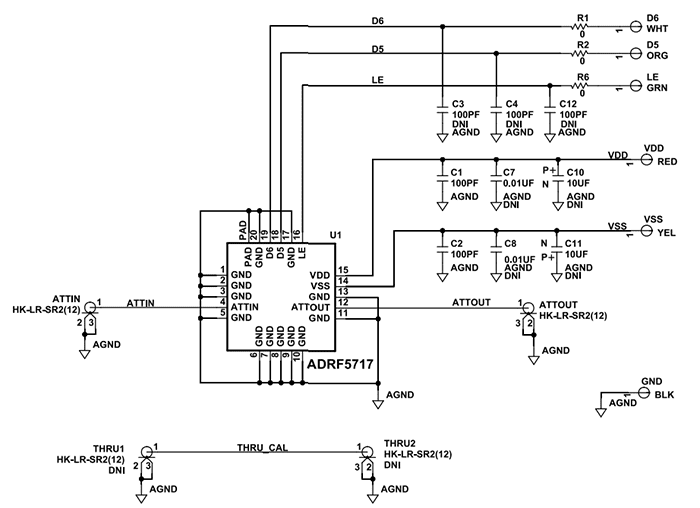

Schematic - Analog Devices Inc. EVAL-ADRF5717 Evaluation Board
