Analog Devices Inc. EVAL-ADRF5714 Evaluation Board

Analog Devices Inc. EVAL-ADRF5714 Evaluation Board evaluates the ADRF5714 1-bit digital attenuator with a 16dB attenuation control range manufactured in the silicon-on-insulator (SOI) process. This full-featured, connectorized evaluation board provides an easy connection to test equipment and offers an additional throughline for calibration.

Features

Full-featured evaluation board for the ADRF5714
Easy connection to test equipment
Additional throughline for calibration

Applications

Industrial scanners
Test and instrumentation
Cellular infrastructure (5G millimeter wave)

Military radios, radars, and electronic countermeasures (ECMs)
Microwave radios and very small aperture terminals (VSATs)

Required Equipment

DC power supply
Network analyzer

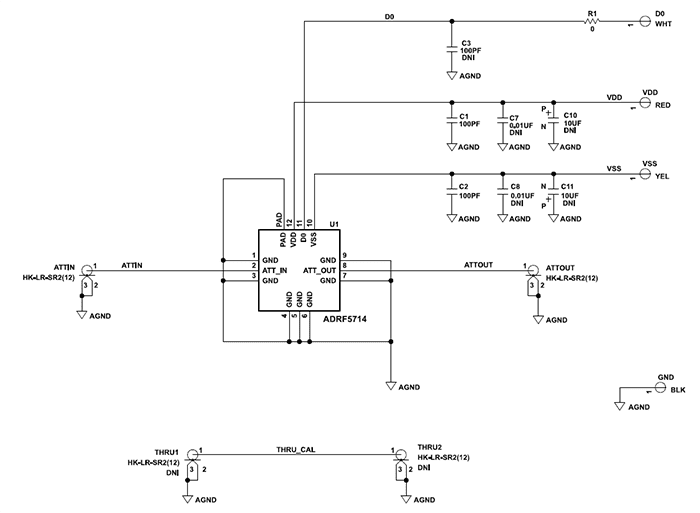

Schematic

Schematic - Analog Devices Inc. EVAL-ADRF5714 Evaluation Board
